| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate |

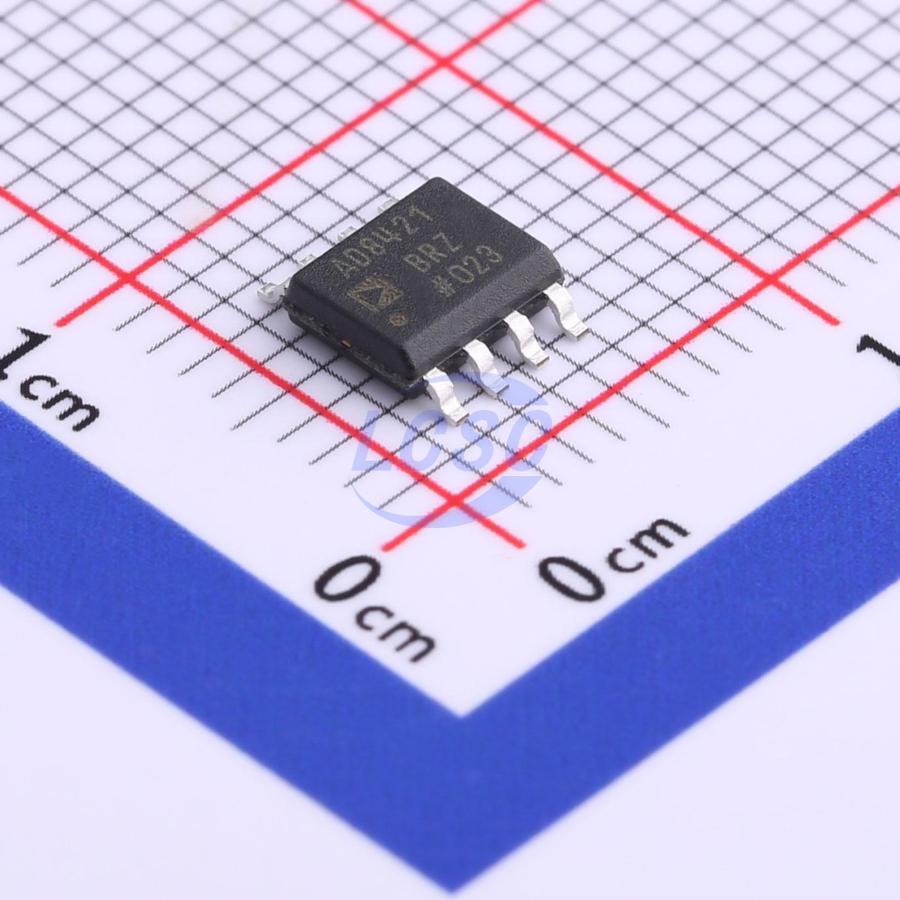

The AD8421BRZ is an instrumentation amplifier manufactured by Analog Devices Inc. This component is designed for high-precision signal amplification tasks. It offers a -3dB bandwidth of 10 MHz and a slew rate of 35V/µs, making it suitable for dynamic signal processing.
The amplifier features a low input bias current of 100 pA and a low input offset voltage of 25 µV, contributing to accurate measurements. It operates within a supply voltage span of 5V to 36V and consumes a supply current of 2mA. The output current capability is 65 mA per channel.
Designed for surface mounting, the AD8421BRZ comes in an 8-SOIC package with dimensions of 0.154 inches (3.90mm) in width. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in various environmental conditions. This device is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.59 | $12.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8421BRZ operates from -40°C to 85°C.
The AD8421BRZ is an instrumentation amplifier.
The -3dB bandwidth of the AD8421BRZ is 10 MHz.
The slew rate of the AD8421BRZ is 35V/µs.
The input offset voltage for the AD8421BRZ is 25 µV.
The AD8421BRZ operates with a supply voltage span from 5 V to 36 V.
The AD8421BRZ is supplied in an 8-SOIC package.
