| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
279 pcs
|
279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Frequency | |
| Input Range | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The AD8364ACPZ-REEL7 from Analog Devices is a dual-channel RF power measurement subsystem designed for precise control and monitoring of signal power. It operates over a frequency range of LF to 2.7 GHz, with an input range from -55 dBm to 5 dBm. The device provides a high accuracy of ±0.5 dB and features a linear-in-dB response.
This RF detector operates on a single 5 V supply, consuming 70 mA of current. It is housed in a 32-LFCSP-VQ (5x5) package and is designed for surface mount applications. The AD8364ACPZ-REEL7 is suitable for various applications including wireless infrastructure power amplifier linearization, antenna VSWR monitoring, and transmitter signal strength indication.
Key features include RMS measurement of high crest-factor signals, dual-channel and channel difference outputs, and an integrated temperature sensor. The device's small footprint and robust performance make it ideal for demanding RF applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8364ACPZ-REEL7 operates from LF up to 2.7 GHz.
The input power range is from -55 dBm to 5 dBm.
The accuracy is ±0.5 dB.
The operating voltage is between 4.5 V and 5.5 V.

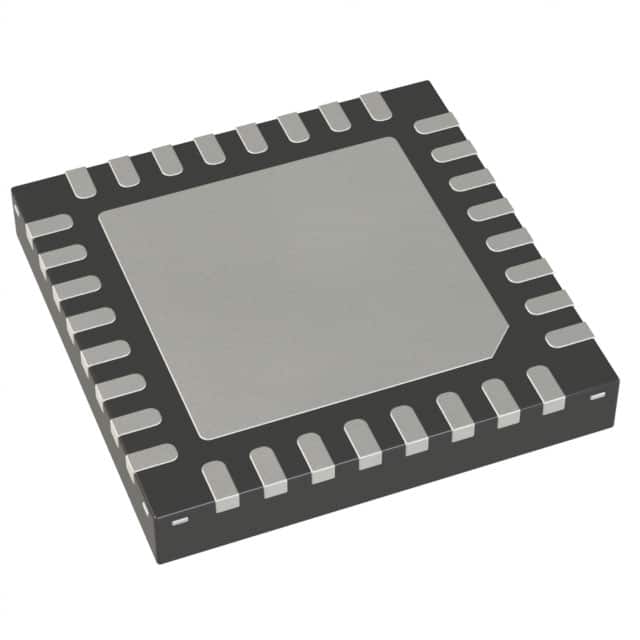

It is in a 32-LFCSP-VQ (5x5) package.
It is a surface mount device.
The operating temperature range is -40°C to +85°C.
