| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Function | |
| LO Frequency | |
| Mounting Type | |
| Noise Floor | |
| Operating Voltage | |
| Output Power | |
| P1dB | |
| RF Frequency | |
| Supplier Device Package | |
| Supplier Package | |
| Test Frequency | |
| Voltage |
The AD8345AREZ is a silicon RFIC quadrature modulator designed by Analog Devices for operation across a frequency range of 140 MHz to 1000 MHz. This device is suitable for various communication systems, including cellular, W-CDMA/CDMA/GSM/PCS/ISM transceivers, fixed broadband access, LMDS/MMDS, Wireless LAN, and digital TV/CATV modulators.
Key electrical specifications include an operating frequency range of 140 MHz to 1000 MHz, a P1dB of +2.5 dBm at 800 MHz, and a noise floor of -155 dBm/Hz. It offers excellent phase accuracy with 0.5 degrees RMS phase error and 0.2 dB amplitude balance. The modulator operates from a single 2.7 V to 5.5 V supply and consumes a typical current of 65 mA. The output power is rated at 2 dBm.

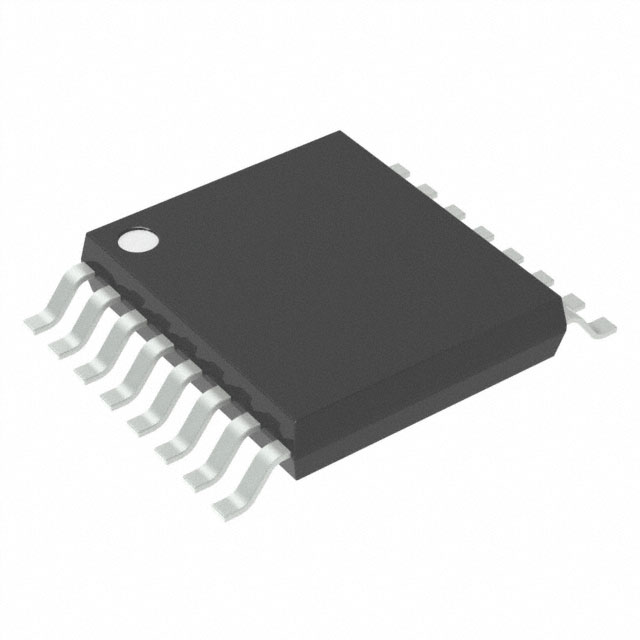

This device is supplied in a 16-lead TSSOP_EP package with exposed pad, designed for surface mounting. Its performance is specified over a temperature range of -40°C to +85°C. The AD8345AREZ is pin-compatible with the AD8346 and AD8349, offering design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8345AREZ operates from 140 MHz to 1000 MHz.
The P1dB of the AD8345AREZ at 800 MHz is +2.5 dBm.
The noise floor of the AD8345AREZ is -155 dBm/Hz.
The RMS phase error for the AD8345AREZ is 0.5 degrees (IS95).
The amplitude balance of the AD8345AREZ is 0.2 dB.
The AD8345AREZ operates from a single 2.7 V to 5.5 V supply.
The typical supply current for the AD8345AREZ is 65 mA.
The output power of the AD8345AREZ is 2 dBm.
The AD8345AREZ is supplied in a 16-lead TSSOP-EP package with an exposed pad.
The AD8345AREZ is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the AD8345AREZ is 1 Unlimited.
