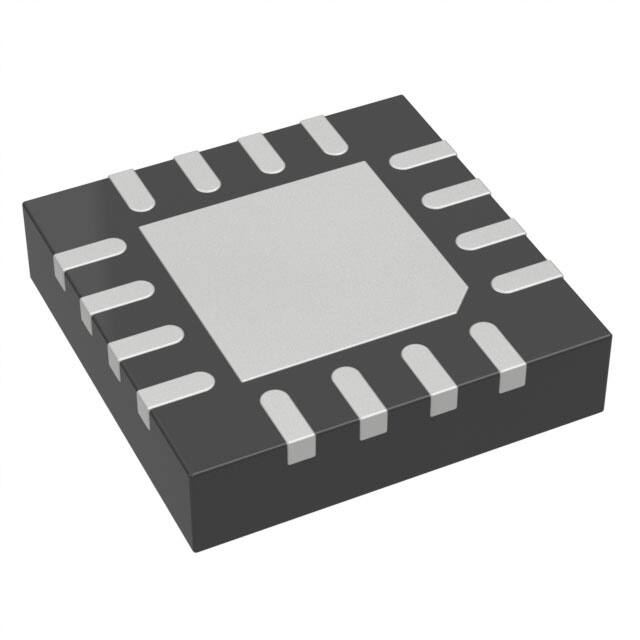

The AD8342ACPZ-REEL7 is a broadband active RF mixer designed for demanding receive channel applications. It offers a typical conversion gain of 3.7 dB and a low noise figure of 12.2 dB, making it suitable for cellular base station receivers, ISM receivers, radio links, and RF instrumentation.
This mixer supports RF frequencies from 0 Hz up to 3.8 GHz and features differential high impedance RF input and open-collector IF outputs. It operates on a single 5V supply with a typical current consumption of 98 mA. The device is housed in a 16-LFCSP-WQ package and is designed for surface mount applications.
Key electrical characteristics include an input IP3 of 22.7 dBm and an input P1dB of 8.3 dBm. The integrated LO driver presents a 50 Ohm input impedance with a low LO drive level of 0 dBm. The operating temperature range is from -40°C to +85°C.
The AD8342ACPZ-REEL7 is well-suited for applications requiring wide bandwidth on all ports and low intermodulation distortion. Its design facilitates easy interfacing with active devices and passive filters, and it can be used in up/down converter configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8342ACPZ-REEL7 has a typical conversion gain of 3.7 dB at an RF frequency of 238 MHz.
The typical noise figure for the AD8342ACPZ-REEL7 is 12.2 dB.
The AD8342ACPZ-REEL7 operates within a supply voltage range of 4.75V to 5.25V.
The AD8342ACPZ-REEL7 is supplied in a 16-LFCSP-WQ (3x3) package designed for surface mounting.
The operating temperature range for the AD8342ACPZ-REEL7 is -40°C to +85°C.
