| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | 106 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| Number of Mixers | |
| RF Type | |
| Secondary Attributes | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The AD831AP from Analog Devices is a monolithic, doubly balanced mixer designed for high-performance RF and IF applications. It offers a wide dynamic range with a +24 dBm third order intercept point (IP3) and a +10 dBm 1 dB compression point, making it suitable for demanding receiver designs.
This mixer supports RF and LO input bandwidths up to 500 MHz, with an IF output bandwidth of 250 MHz for differential current and over 200 MHz for single-ended voltage output. It can operate from single or dual supplies, with ports that can be DC coupled when using dual supplies, enabling operation down to DC.

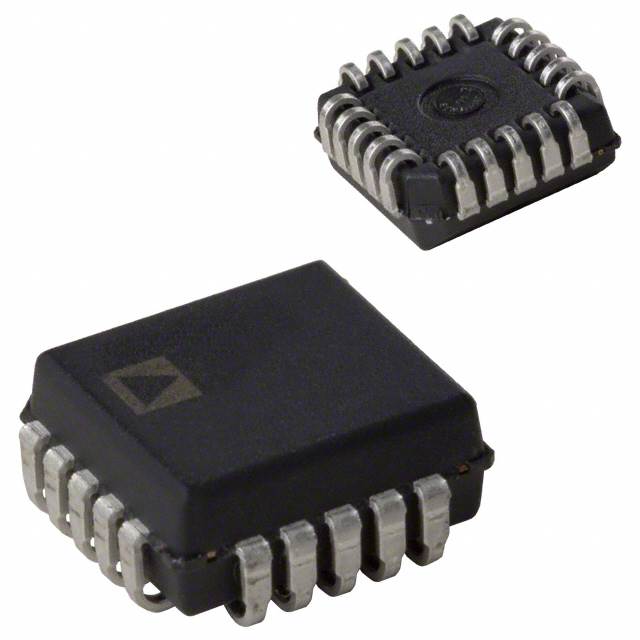

The AD831AP is available in a 20-LCC (J-Lead) surface mount package. Its features include user-programmable power consumption and a low LO drive requirement of –10 dBm, simplifying system design by reducing the need for a high-power LO driver.
Applications include RF to IF downconversion, direct-to-baseband conversion, image-reject mixers, and I/Q modulators and demodulators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD831AP operates from 4.5V to 5.5V.
The AD831AP is available in a 20-LCC (J-Lead) package for surface mounting.
The AD831AP is RoHS3 Compliant.
The AD831AP is designed for HF and VHF frequencies up to 500 MHz.
The AD831AP has a third order intercept point of +24 dBm.
The noise figure for the AD831AP is 14 dB.
