| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,237 pcs
|
2237 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
93 pcs
|
93 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Frequency | |
| Input Range | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Response Time | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The AD8312ACBZ-P7 is a complete RF detector subsystem designed for measuring radio frequency signals. It operates across a wide frequency range of 50 MHz to 3.5 GHz, making it suitable for various wireless applications.
This device features a typical dynamic range of 45 dB, with an input range from -45 dBm to 0 dBm. It provides a temperature-stable, linear-in-dB response and is accurate up to 3.5 GHz. The detector operates from a voltage supply of 2.7V to 5.5V and consumes a low current of 5.7 mA.

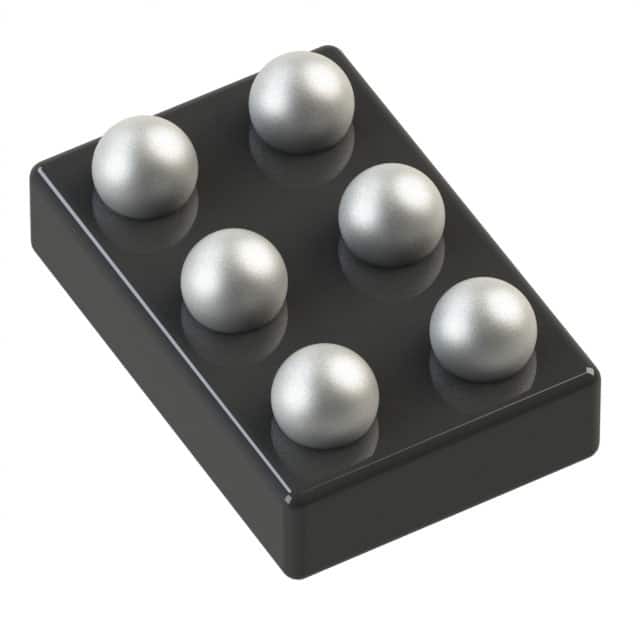

Packaged in a 6-WLCSP (1.45x0.95) format, the AD8312ACBZ-P7 is designed for surface mount applications. Its compact size and performance characteristics make it ideal for integration into cellular handsets and other wireless terminal devices for RSSI and TSSI measurements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is from 50 MHz to 3.5 GHz.
The typical input range is from -45 dBm to 0 dBm.
The operating voltage is between 2.7V and 5.5V.
It is supplied in a 6-WLCSP (1.45x0.95) package and is designed for surface mounting.
The device operates within a temperature range of -40°C to +85°C.
