| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Amplifier Type | |
| Automotive Grade | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Slew Rate | |
| Supply Current |
The AD824AR-14 is a J-FET operational amplifier manufactured by Analog Technologies. This component integrates four independent amplifier circuits within a single package, designed for versatile applications.
Key electrical characteristics include a 2 MHz gain bandwidth product and a slew rate of 2 V/µs. The amplifier features a Rail-to-Rail output stage, enabling it to operate efficiently across its specified supply voltage span of 3V to 30V. With a low input bias current of 4 pA and an input offset voltage of 500 µV, it is suitable for precision applications.
The device operates within an extended temperature range of -40°C to 85°C, making it robust for various environmental conditions. It is supplied in a 14-SOIC surface-mount package, facilitating integration into printed circuit boards.
Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The REACH status is noted as unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD824AR-14 is a J-FET operational amplifier.
The AD824AR-14 contains 4 amplifier circuits.
The AD824AR-14 features a Rail-to-Rail output type.
The gain bandwidth product for the AD824AR-14 is 2 MHz.
The AD824AR-14 operates from -40°C to 85°C.

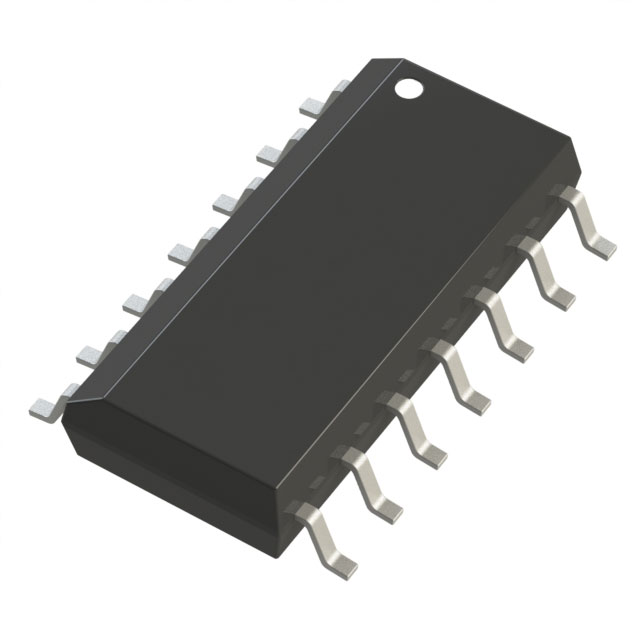

The AD824AR-14 is supplied in a 14-SOIC package.
The AD824AR-14 is RoHS3 Compliant.
