| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Industrial Grade | |
| Lead Style | |
| Number of Circuits | |
| Output Type | |
| SVHC Present | |
| Slew Rate | |
| Tape & Reel |
The Analog Devices AD822BRZ-REEL7 is a general purpose operational amplifier designed for a wide range of applications. This device features two independent amplifier circuits within a single package, offering a rail-to-rail output for maximum dynamic range.
Key electrical specifications include a gain bandwidth product of 1.9 MHz and a slew rate of 3V/µs, making it suitable for moderate speed signal processing. The input bias current is a low 2 pA, and the input offset voltage is 300 µV, ensuring signal integrity. It operates with a supply voltage span from 5V to 30V, drawing a quiescent current of 1.24mA.

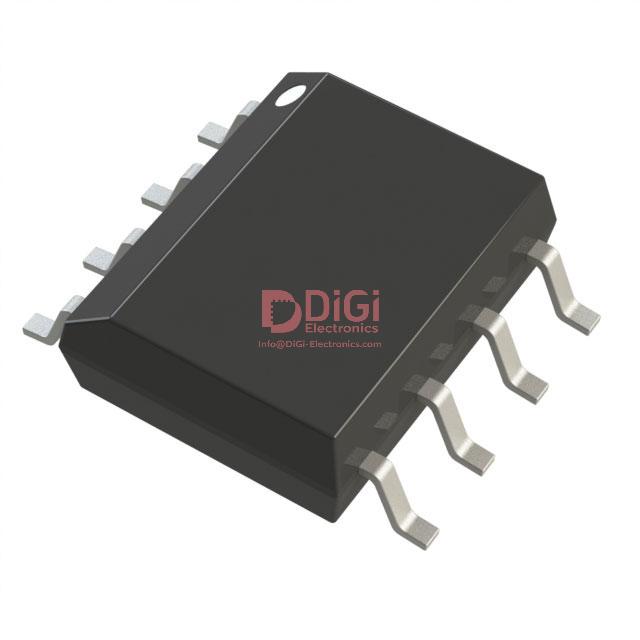

Packaged in an 8-SOIC format, this component is designed for surface mounting. The AD822BRZ-REEL7 is suitable for applications requiring precise amplification and signal conditioning where space and power efficiency are important considerations.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 V to 30 V.
1.9 MHz.
Yes, it has rail-to-rail output.
2 pA.
Two (dual).
3 V/µs.
8-SOIC.
