| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Slew Rate |

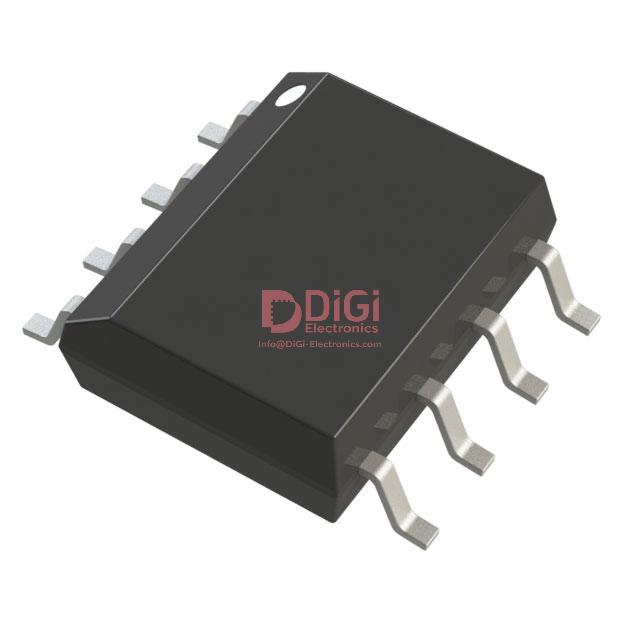

The Analog Devices AD822AR is a versatile general purpose operational amplifier designed for a wide range of applications. This component features two independent circuits within a single package, offering enhanced design flexibility. It provides rail-to-rail output capabilities, ensuring maximum dynamic range. The amplifier boasts a gain bandwidth product of 1.9 MHz and a slew rate of 3V/µs, making it suitable for moderate speed signal processing.
With a low input bias current of 2 pA and an input offset voltage of 400 µV, the AD822AR ensures signal integrity. It operates efficiently with a supply current of 1.24 mA and can deliver an output current of 20 mA per channel. The device supports a wide supply voltage span, from a minimum of 5V to a maximum of 30V, accommodating various power requirements. It is housed in a standard 8-SOIC package, suitable for through-hole or surface-mount assembly.
The operating temperature range for the AD822AR is -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. Its general-purpose nature and robust specifications make it a suitable choice for instrumentation, buffer amplifiers, and other analog signal conditioning circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The supply voltage span is from 5V to 30V.
The gain bandwidth product is 1.9 MHz.
There are 2 circuits in the AD822AR.
The AD822AR has a rail-to-rail output.
