AD8192ACPZ The AD8192ACPZ is a 2:1 HDMI/DVI switch with equalized TMDS inputs and pre-emphasized outputs. It supports up to 2.25 Gbps data rate and 225 MHz pixel clock.
Mfr Part #:

AD8192ACPZ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD8192ACPZ is a 2:1 HDMI/DVI switch with equalized TMDS inputs and pre-emphasized outputs. It supports up to 2.25 Gbps data rate and 225 MHz pixel clock.
✓ Total Stock: 6,898 pcs

AD8192ACPZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,898 pcs
On Request
6898 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD8192ACPZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Interface
Data Rate
ESD Protection
Function
Mounting Type
Number of Inputs
Number of Outputs
Operating Temperature Range
SVHC Present
Standards
Supplier Device Package
View Similar Products (0)

AD8192ACPZ Description

Short technical summary and product information.

The AD8192ACPZ is a complete HDMI/DVI link switch from Analog Devices, featuring 2 inputs and 1 output. It is compliant with HDMI 1.3a and DVI standards, and includes equalized TMDS inputs for long cable runs, pre-emphasized outputs, and switchable 50-ohm on-chip input terminations. The device provides 7 kV HBM ESD protection on HDMI input pins.



Key specifications include a maximum data rate of 2.25 Gbps and a maximum pixel clock of 225 MHz. The control interface supports I2C and Serial protocols. The device also includes bidirectional DDC buffers with logic level translation (3.3V, 5V), a bidirectional CEC buffer with integrated pull-up resistors, and hot plug detect pulse low on channel switch.



Typical applications include front panel buffers for HDTV sets, standalone HDMI switchers, multiple input displays, projectors, A/V receivers, and set-top boxes.

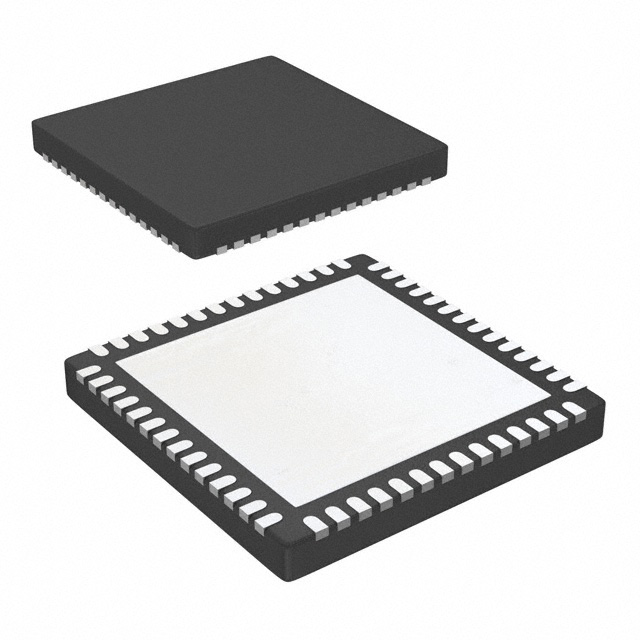

The AD8192ACPZ is available in a 56-lead LFCSP package (8mm x 8mm) with exposed pad, surface mount. It operates over an industrial temperature range of -40°C to +85°C. The device is RoHS compliant and lead-free.

AD8192ACPZ Quick Information

Product Type: HDMI/DVI Switch
Canonical Name: AD8192ACPZ 2:1 HDMI/DVI Switch with Equalization and DDC/CEC Buffers
Subcategory: HDMI/DVI Switch

AD8192ACPZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

AD8192ACPZ Features

  • 2:1 HDMI/DVI switch with equalization.
  • Supports 2.25 Gbps data rate and 225 MHz pixel clock.
  • I2C/Serial control interface with DDC/CEC buffers.
  • 7 kV HBM ESD protection on HDMI input pins.
  • Surface mount 56-LFCSP package, 8x8mm.

AD8192ACPZ Applications

  • Front panel buffer for HDTV sets.
  • Standalone HDMI switcher for multiple inputs.
  • Used in projectors and A/V receivers.
  • Ideal for set-top boxes and video displays.

AD8192ACPZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the function of the AD8192ACPZ?

It is a switch for video display applications.

What is the maximum data rate of the AD8192ACPZ?

2.25 Gbps.

What is the maximum pixel clock?

225 MHz.

What is the operating temperature range?

-40°C to +85°C.

What is the package type?

56-lead LFCSP (8x8 mm) with exposed pad.

What is the ESD protection level?

7 kV HBM on HDMI input pins.

Is the AD8192ACPZ RoHS compliant?

Yes, RoHS3 compliant (unverified).
