| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Bandwidth | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Slew Rate | |
| Supply Current | |
| Supply Voltage |

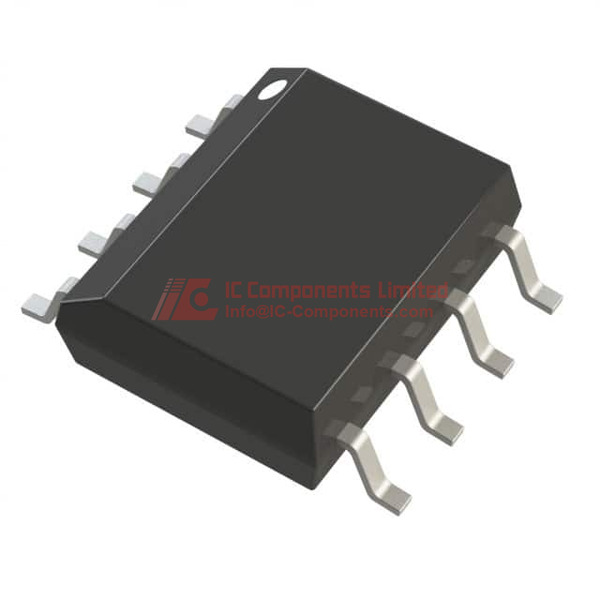

The AD8062AR is a dual voltage feedback operational amplifier manufactured by Analog Devices Inc. This device features two independent amplifier circuits within a single 8-SOIC package, designed for surface mounting.
Key electrical specifications include a wide supply voltage range of 2.7V to 8V, a typical input offset voltage of 1mV, and a typical input bias current of 3.5 µA. It boasts a high slew rate of 650 V/µs and a 3dB small signal bandwidth of 320 MHz, making it suitable for high-frequency signal processing. The amplifier provides a rail-to-rail output, maximizing the dynamic signal range, and can deliver up to 50 mA of output current per channel.
The AD8062AR operates within a temperature range of -40°C to 85°C. Its performance characteristics, such as ultra-fast slew rate and high bandwidth, make it excellent for processing high-speed analog signals. The low input offset voltage and bias current reduce errors in precision applications.
This operational amplifier is well-suited for applications including video signal processing, data acquisition systems, ADC buffers, active filter design, test and measurement equipment, precision instrumentation, audio electronics, and communication equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7 V to 8 V.
8-SOIC (0.154", 3.90mm Width) surface mount package.
-40°C to 85°C.
320 MHz (-3dB small signal).
650 V/µs typical.
Rail-to-rail output.
