| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Halogen Free | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Slew Rate |

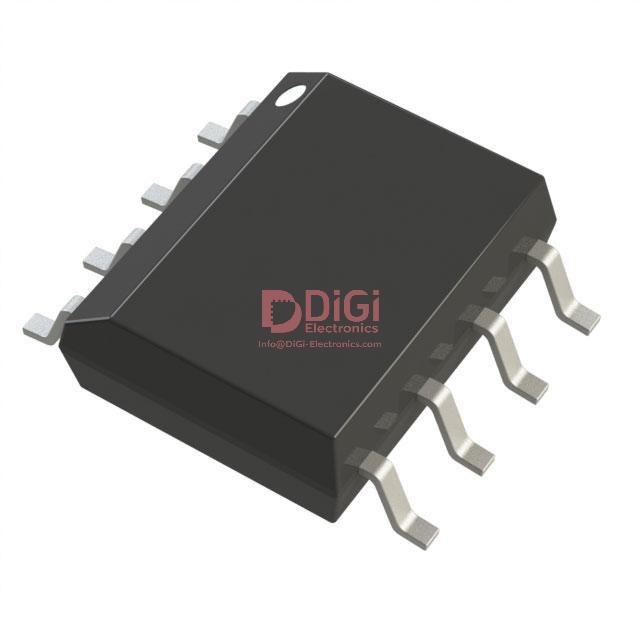

The Analog Devices AD8042ARZ is a dual-channel voltage feedback amplifier designed for high-performance applications. It offers a rail-to-rail output stage, enabling it to achieve maximum output voltage swing. This amplifier operates over a wide supply voltage range, from a minimum of 3V to a maximum of 12V.
Key electrical characteristics include a slew rate of 225V/µs and a gain bandwidth product of 90 MHz, making it suitable for demanding signal processing tasks. The input bias current is 1.2 µA, and the input offset voltage is 3 mV. Each channel consumes a supply current of 6mA, with an output current capability of 50 mA per channel.
The AD8042ARZ is available in an 8-SOIC package and is designed for surface mount applications. It operates within an industrial temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8042ARZ is a Voltage Feedback Amplifier.
There are 2 circuits in the AD8042ARZ.
The output type is Rail-to-Rail.
The slew rate is 225V/µs.
The gain bandwidth product is 90 MHz.
The operating temperature range is -40°C to 85°C.
The package type is 8-SOIC.
