| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
164 pcs
|
164 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Slew Rate |

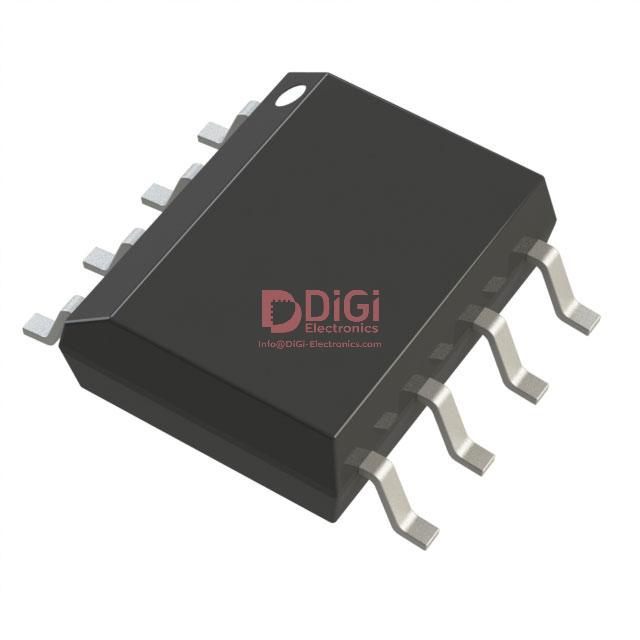

The Analog Devices AD8022ARZ is a voltage feedback amplifier IC featuring two independent circuits within a single package. It is designed for applications requiring high speed and precision, boasting a gain bandwidth product of 100 MHz and a slew rate of 50V/µs.
This amplifier operates over a wide supply voltage span, from 4.5V to 26V, and has a low input bias current of 2.5 µA and an input offset voltage of 1.5 mV. The output current per channel is 55 mA, with a typical supply current of 4 mA.
The AD8022ARZ is available in a surface-mount 8-SOIC package, making it suitable for compact PCB designs. It operates within an industrial temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD8022ARZ is a Voltage Feedback Amplifier.
The AD8022ARZ has 2 circuits.
The slew rate of the AD8022ARZ is 50V/µs.
The gain bandwidth product of the AD8022ARZ is 100 MHz.
The operating temperature range for the AD8022ARZ is -40°C to 85°C.
The AD8022ARZ is in an 8-SOIC package.
