| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Input Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Reference Type | |
| SVHC Present | |
| Tape & Reel |

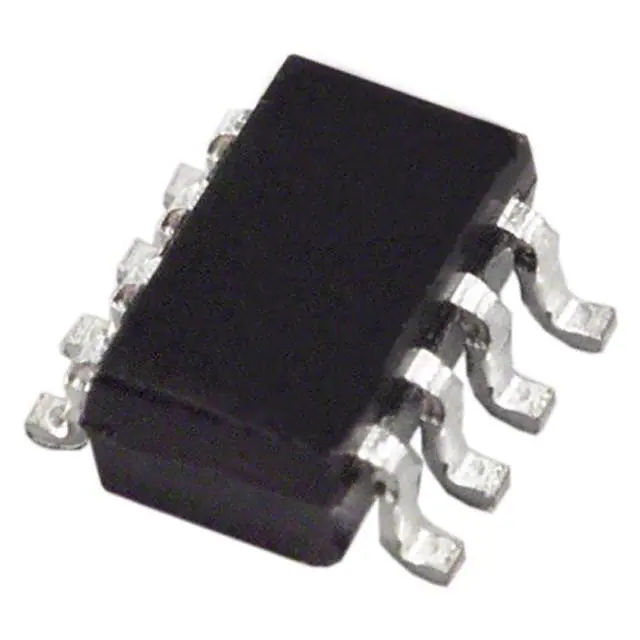

The AD7991YRJZ-0500RL7 from Analog Devices Inc. is a versatile 12-bit Analog to Digital Converter (ADC) designed for various data acquisition applications. It utilizes a Successive Approximation Register (SAR) architecture, offering a sampling rate of up to 140kSPS.
This ADC supports 3 or 4 single-ended input channels and communicates via the I²C interface. It operates within a wide analog and digital supply voltage range of 2.7V to 5.5V, making it suitable for diverse power requirements. The device is specified for operation across a temperature range of -40°C to 125°C.
Packaged in a compact SOT-23-8 surface-mount package, the AD7991YRJZ-0500RL7 is available in Tape & Reel or Cut Tape formats. Its robust specifications and reliable performance make it a suitable choice for embedded systems and signal processing tasks requiring accurate analog-to-digital conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7991YRJZ-0500RL7 has a resolution of 12 bits.
The AD7991YRJZ-0500RL7 supports a sampling rate of up to 140kSPS.
It supports 3 or 4 single-ended input channels.
The data interface used is I²C.
The analog and digital supply voltage range is 2.7V to 5.5V.
The operating temperature range is -40°C to 125°C.
It is supplied in a SOT-23-8 package for surface mounting.
