| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Tape & Reel |

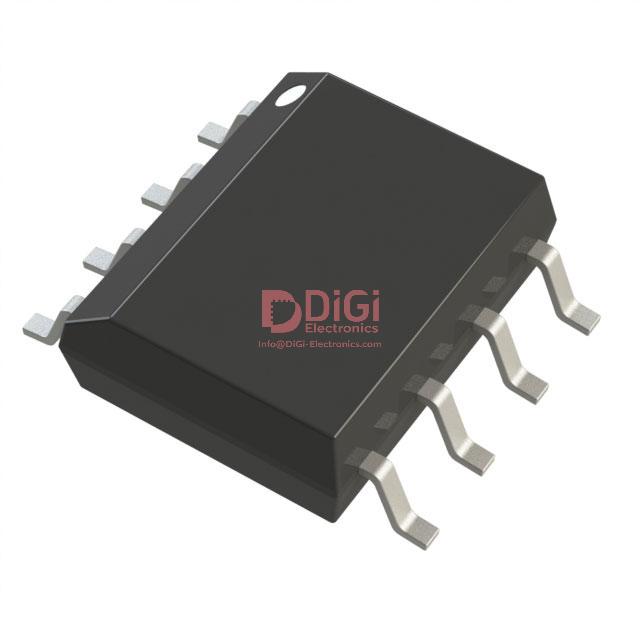

The Analog Devices AD797ARZ-REEL7 is a high-performance general purpose operational amplifier designed for a wide range of electronic applications. This single-circuit amplifier boasts a significant gain bandwidth product of 110 MHz and a fast slew rate of 20V/µs, enabling efficient signal processing.
Key electrical characteristics include a low input bias current of 250 nA and an input offset voltage of 25 µV, contributing to signal integrity. It operates with a supply voltage span from 10V to 30V and consumes a supply current of 8.2mA. The output current capability is 50 mA.
Packaged in an 8-SOIC surface-mount case, the AD797ARZ-REEL7 is suitable for integration into various circuit designs. It operates within a temperature range of -40°C to 85°C, making it versatile for different environmental conditions. The component is supplied in tape and reel packaging for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gain bandwidth product is 110 MHz.
The slew rate is 20V/µs.
The operating temperature range is -40°C to 85°C.
It is supplied in an 8-SOIC package.
It is a surface mount device.
