| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,808 pcs
|
1808 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Number of Channels | |
| Tape & Reel |

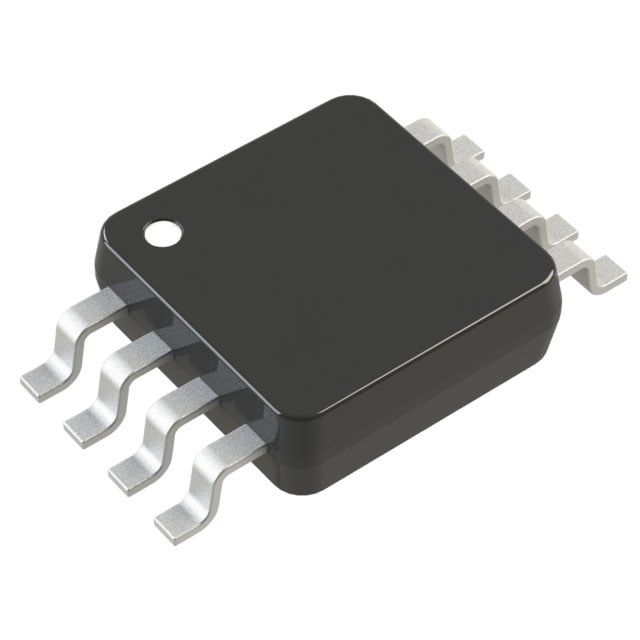

The AD7922ARMZ-REEL7 is a high-speed, low-power, 12-bit successive approximation analog-to-digital converter (ADC) from Analog Devices Inc. It features two channels and can achieve throughput rates up to 1 MSPS. The device operates from a single power supply ranging from 2.35 V to 5.25 V.
This ADC includes a low-noise, wide bandwidth track-and-hold amplifier capable of handling input frequencies exceeding 6 MHz. The conversion process is controlled via CS and the serial clock, enabling easy interfacing with microprocessors and DSPs. It supports SPI, QSPI, MICROWIRE, and DSP compatible serial interfaces. The AD7922ARMZ-REEL7 also supports Daisy Chain mode, allowing multiple ADCs to be connected together.
Designed for efficiency, the AD7922ARMZ-REEL7 utilizes advanced techniques for very low power dissipation, consuming only 4.8 mW typically at 1 MSPS with 3 V supplies. The analog input range is 0 to VDD, as the reference is taken internally from VDD. The device is available in an 8-lead MSOP or 8-lead TSOT package.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.84 | $9.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7922ARMZ-REEL7 has a resolution of 12-bit.
The maximum throughput rate for the AD7922ARMZ-REEL7 is 1 MSPS.
The AD7922ARMZ-REEL7 operates from a single power supply voltage range of 2.35 V to 5.25 V.
The AD7922ARMZ-REEL7 is available in 8-lead MSOP and 8-lead TSOT packages.
The typical power consumption is 4.8 mW at 1 MSPS with 3V supplies.
The AD7922ARMZ-REEL7 is compatible with SPI, QSPI, MICROWIRE, and DSP serial interfaces.
