AD790AQ The AD790AQ is a fast, precision comparator with latch from Analog Devices. It offers 45 ns propagation delay, 250 µV offset, and operates from single 5V or dual ±15V supplies.
Mfr Part #:

AD790AQ

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD790AQ is a fast, precision comparator with latch from Analog Devices. It offers 45 ns propagation delay, 250 µV offset, and operates from single 5V or dual ±15V supplies.
✓ Total Stock: 2,406 pcs

AD790AQ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,356 pcs
On Request
2356 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD790AQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
CMRR, PSRR (Typ)
Current
Hysteresis
Mounting Type
Number of Elements
Operating Temperature
Output Type
Power Dissipation
Propagation Delay (Max)
Supplier Device Package
Type
Voltage
View Similar Products (0)

AD790AQ Description

Short technical summary and product information.

The AD790AQ is a fast, precision voltage comparator manufactured by Analog Devices. It features a propagation delay of 45 ns maximum and an input offset voltage of 250 µV maximum, ensuring high-speed and accurate comparisons. The device includes an onboard latch for holding the output state, and its output is compatible with both CMOS and TTL logic levels.



The comparator can operate from a single 5 V supply or dual ±15 V supplies, making it versatile for various system designs. It has a maximum differential input voltage of 15 V and a typical power dissipation of 60 mW. The input hysteresis is 500 µV maximum, which helps prevent oscillations near the threshold.

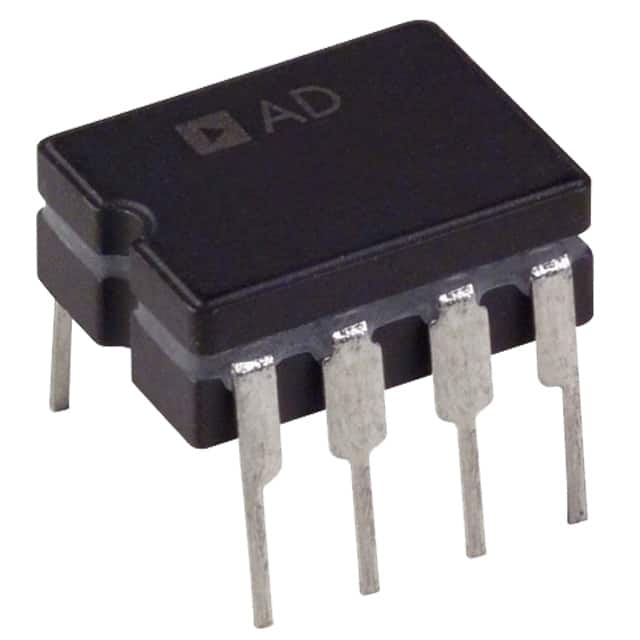

The AD790AQ is housed in an 8-pin CDIP (Ceramic DIP) package with through-hole mounting, and the supplier device package is 8-CERDIP. It is suitable for applications such as zero-crossing detectors, overvoltage detectors, pulse-width modulators, precision rectifiers, and discrete A/D converters. The operating temperature range is -40°C to 85°C, covering industrial environments.

AD790AQ Quick Information

Product Type: Comparator
Canonical Name: AD790AQ Fast/Precision Comparator with Latch
Subcategory: Precision Comparator

AD790AQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD790AQ Features

  • 45 ns maximum propagation delay.
  • 250 µV maximum input offset voltage.
  • Onboard latch for output hold.
  • CMOS and TTL compatible output.
  • Operates from single 5V or dual ±15V.

AD790AQ Applications

  • Ideal for zero-crossing detector circuits.
  • Used in overvoltage detection systems.
  • Suitable for pulse-width modulator designs.
  • Applied in precision rectifier circuits.
  • Used in discrete A/D converter designs.

AD790AQ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the AD790AQ?

8-CDIP (0.300", 7.62mm) with supplier device package 8-CERDIP.

What is the operating temperature range?

-40°C to 85°C (industrial).

Is the AD790AQ RoHS compliant?

RoHS3 compliant (unverified).

What is the propagation delay?

45 ns maximum (datasheet states 45 ns, existing_db states 50 ns; conflict flagged).

What is the input offset voltage?

250 µV maximum (datasheet states 250 µV, existing_db states 1.5 mV @5V; conflict flagged).

What supply voltages can the AD790AQ operate from?

Single 5 V or dual ±15 V supplies.

Does the AD790AQ have a latch?

Yes, it includes an onboard latch.
