| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Interface | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resolution (Bits) | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage Supply Source |

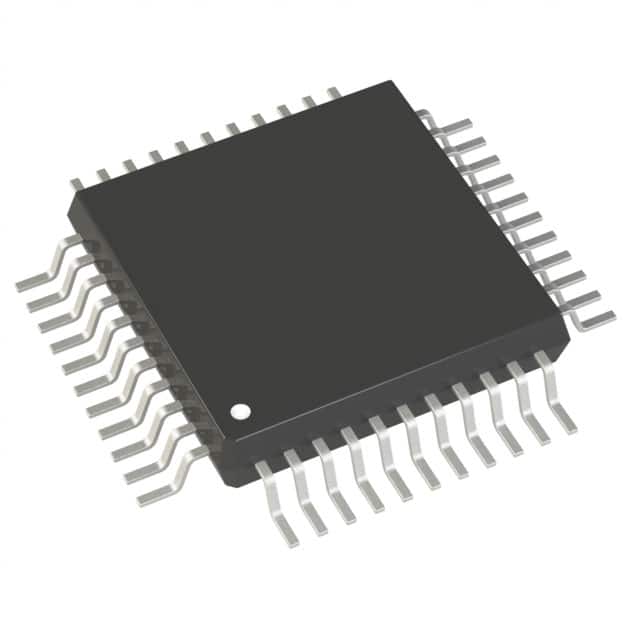

The AD7891ASZ-1 is an 8-channel, 12-bit high-speed data acquisition system (DAS) manufactured by Analog Devices / Maxim Integrated. It integrates an input multiplexer, track/hold amplifier, 12-bit ADC, 2.5V reference, and a high-speed parallel/serial interface in a single 44-MQFP package.
This device offers a sampling rate of 500kSPS with a typical conversion time of 1.6 µs. The AD7891-1 model accepts analog input ranges of ±5V and ±10V. It operates from a single 5V supply and is designed for surface mount assembly.
The AD7891ASZ-1 is suitable for data acquisition systems, motor control, mobile communication base stations, and instrumentation applications. It is specified for an operating temperature range of -40°C to +85°C.
The AD7891ASZ-1 has a resolution of 12 bits.
The AD7891ASZ-1 has 8 single-ended analog input channels.
The maximum sampling rate is 500kSPS (500,000 samples per second).
The operating temperature range is -40°C to +85°C.
The AD7891ASZ-1 is available in a 44-MQFP (10x10mm) surface-mount package.
The AD7891ASZ-1 operates from a single 5V supply.
The AD7891ASZ-1 supports ±5V and ±10V analog input ranges.
