| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Contact Plating | |
| Input Type | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Number of Elements | |
| Number of Inputs | |
| Operating Temperature | |
| Reference Type | |
| SVHC Present | |
| Supply Voltage | |
| Technology |
The Analog Devices AD7859APZ is a 12-bit successive approximation Analog to Digital Converter (ADC). It is designed for applications requiring precise data conversion.
Key electrical specifications include a supply voltage range of 3V to 5.5V, with a typical operating voltage of 5V and a nominal 3.6V. The device has a maximum power dissipation of 30mW and a typical power dissipation of 25mW. It supports multiple input types, including pseudo-differential and single-ended, and can handle 4 or 8 inputs.
The operating temperature range for the AD7859APZ is -40°C to 85°C. The component is supplied in a 44-LCC (J-Lead) surface-mount package. It features a J-Bend terminal form and is plated with tin. The peak reflow temperature is 245°C with a maximum time of 30 seconds at this temperature.
This ADC is suitable for various data acquisition systems where accurate conversion of analog signals to digital data is critical. Its robust operating temperature range and surface-mount packaging make it adaptable for diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7859APZ has a nominal supply voltage of 3.6V, with a minimum of 3V and a maximum of 5.5V.
The AD7859APZ operates within a temperature range of -40°C to 85°C.

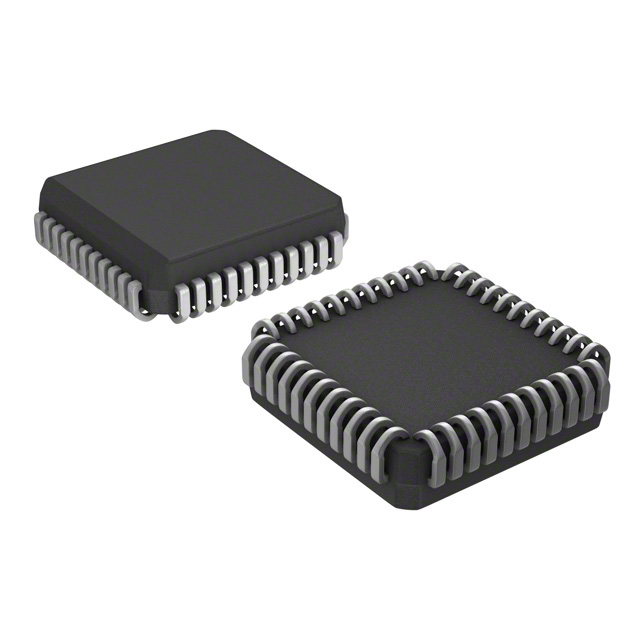

The AD7859APZ is supplied in a 44-LCC (J-Lead) package for surface mounting.
The AD7859APZ is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the AD7859APZ is 1 Unlimited.
The peak reflow temperature for the AD7859APZ is 245°C.
The factory lead time for the AD7859APZ is 8 weeks.
