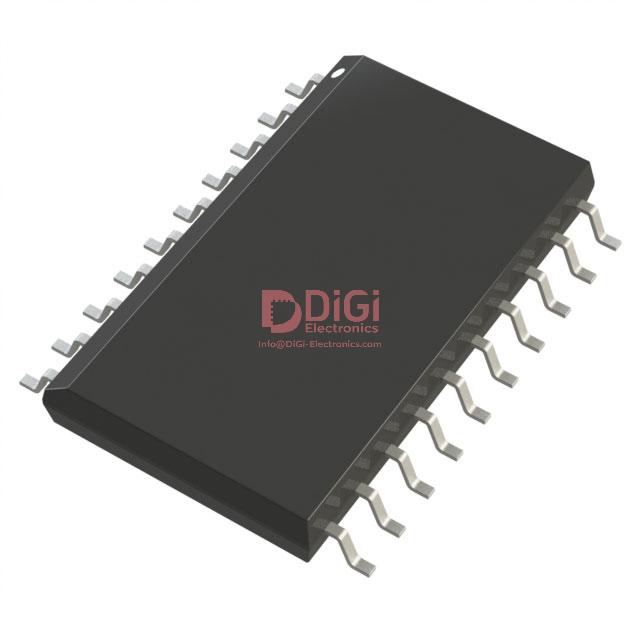

The AD7801BR is a single, 8-bit, voltage-output digital-to-analog converter (DAC) manufactured by Analog Devices Inc. It operates from a single supply voltage ranging from +2.7 V to +5.5 V. The device features an on-chip output buffer that allows the DAC output to swing rail-to-rail.
Key electrical specifications include an 8-bit resolution, a relative accuracy of ±1 LSB, and a differential nonlinearity of ±1 LSB. The settling time is typically 2µs. The AD7801BR supports a parallel interface and can utilize either an internal or external reference. It consumes low power, with a maximum of 1.75 mA during normal operation at 3.3 V and reducing to 1 mA in power-down mode.
This DAC is suitable for applications requiring precise voltage output control. Its low power consumption makes it ideal for portable, battery-powered instruments. The device is available in a 20-pin SOIC package.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7801BR has an 8-bit resolution.
The AD7801BR operates from a supply voltage range of 2.7V to 5.5V for both analog and digital supplies.
The AD7801BR is available in a 20-SOIC package.
The AD7801BR can operate within a temperature range of -40°C to 105°C.
The settling time for the AD7801BR is typically 2µs.
