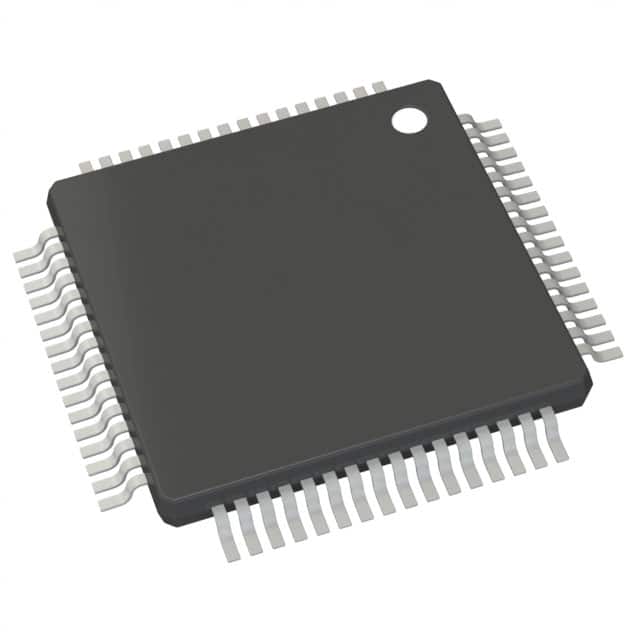

AD7762BSVZ The AD7762BSVZ is a 24-bit Sigma-Delta Analog-to-Digital Converter from Analog Devices. It offers a high sampling rate and dynamic range, suitable for demanding data acquisition tasks.
Mfr Part #:

AD7762BSVZ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD7762BSVZ is a 24-bit Sigma-Delta Analog-to-Digital Converter from Analog Devices. It offers a high sampling rate and dynamic range, suitable for demanding data acquisition tasks.
✓ Total Stock: 3,500 pcs

AD7762BSVZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD7762BSVZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

AD7762BSVZ Description

Short technical summary and product information.

The AD7762BSVZ is a high-performance, 24-bit Sigma-Delta Analog-to-Digital Converter (ADC) from Analog Devices. It is designed for high-speed data acquisition systems, offering a maximum output data rate of 625 kSPS with 109 dB of dynamic range. This integration simplifies design by including an on-chip buffer for signal driving, a differential amplifier for signal buffering and level shifting, and digital offset and gain correction registers.



The device features a fully differential modulator input and a low-pass Finite Impulse Response (FIR) filter with programmable coefficients. It supports programmable over-sampling rates from 32x to 256x. The AD7762BSVZ operates with an external reference and is available in a 64-TQFP Exposed Pad package, designed for surface mounting.



Key specifications include an operating temperature range of -40°C to 85°C and a nominal operating voltage of 2.5V. Its architecture is ideal for applications requiring high Signal-to-Noise Ratio (SNR) without complex front-end signal processing, such as vibration analysis and general instrumentation.

AD7762BSVZ Quick Information

Product Type: Analog to Digital Converter (ADC)
Canonical Name: AD7762BSVZ 24-Bit Sigma-Delta Analog-to-Digital Converter
Subcategory: ADC

AD7762BSVZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD7762BSVZ Features

  • 24-bit resolution Sigma-Delta ADC.
  • 625 kSPS maximum output data rate.
  • 109 dB dynamic range at 625 kHz.
  • Differential input, FIR filter included.
  • Surface Mount 64-TQFP Exposed Pad package.

AD7762BSVZ Applications

  • Ideal for high-speed data acquisition.
  • Suitable for vibration analysis systems.
  • Used in precision instrumentation.
  • Simplifies complex signal processing designs.

AD7762BSVZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD7762BSVZ ADC?

The AD7762BSVZ is a 24-bit Analog-to-Digital Converter.

What is the maximum sampling rate for the AD7762BSVZ?

The AD7762BSVZ has a maximum output data rate of 625 kSPS.

What is the dynamic range of the AD7762BSVZ at its maximum data rate?

The dynamic range at 625 kHz output data rate is 109 dB.

What type of input does the AD7762BSVZ feature?

The AD7762BSVZ features a differential input.

What is the operating temperature range for the AD7762BSVZ?

The operating temperature range is -40°C to 85°C.

What package is the AD7762BSVZ supplied in?

The AD7762BSVZ is supplied in a 64-TQFP Exposed Pad package for surface mounting.

What is the RoHS status of the AD7762BSVZ?

The RoHS status is RoHS3 Compliant, but this data has low confidence and requires verification.
