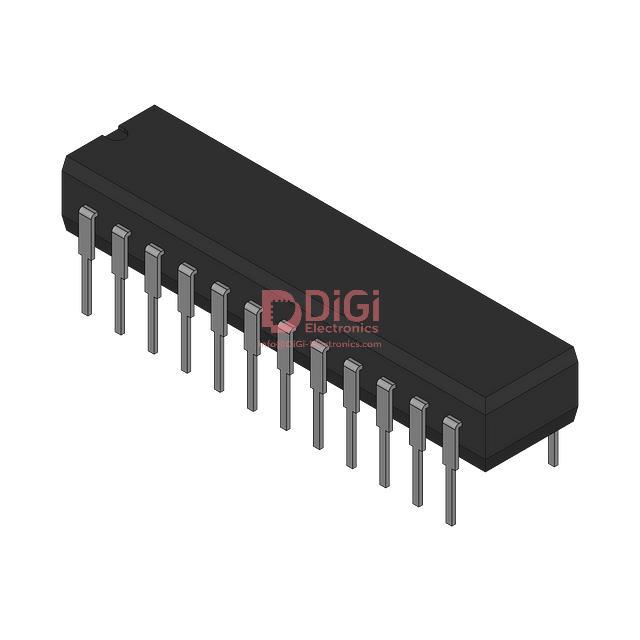

The AD7755AN is an energy metering integrated circuit manufactured by Analog Devices, Inc. This IC is specifically designed for single-phase energy measurement applications. It features a wide operating supply voltage range from 4.5V to 5.5V, ensuring flexibility in various power systems.
The device boasts a low measurement error of 0.1%, providing accurate energy monitoring. It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions. The AD7755AN is housed in a 24-PDIP package and is designed for through-hole mounting.
Key electrical characteristics include an input impedance of 390 kOhm and a supply current of 2mA. The I/O voltages range from 0.8V to 2.4V for low and 4.5V for high states. This component is ideal for applications requiring precise energy consumption tracking.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
The operating temperature range is -40°C to 85°C.
It comes in a 24-DIP (0.300", 7.62mm) through-hole package, also supplied as 24-PDIP.
The input impedance is 390kΩ.
The measurement error is 0.1%.
The supply current is 2mA.
It is designed for single phase energy metering.
