Mfr Part #:

AD7710ARZ-REEL7

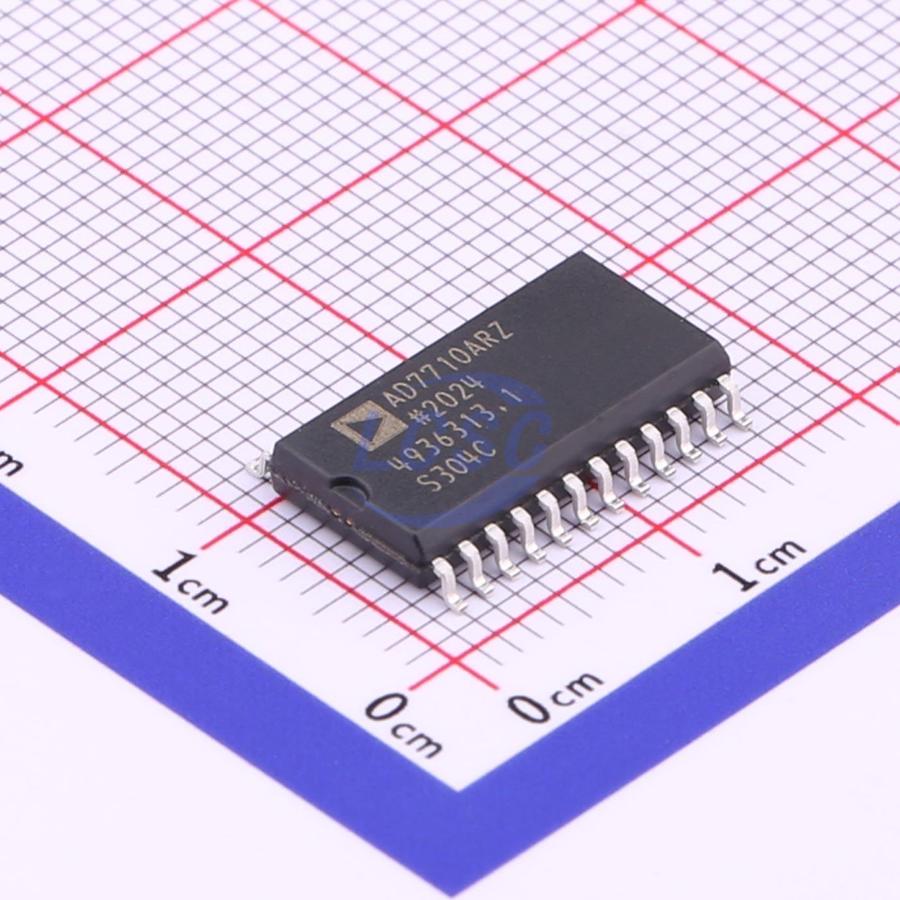

The AD7710ARZ-REEL7 is a 24-bit Analog to Digital Converter from ADI Electronics. It features a programmable gain front end and low power consumption.

✓ Total Stock: 100 pcs

$ Price Range: $29.75

AD7710ARZ-REEL7 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AD7710ARZ-REEL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ADI Electronics
Gain	1 to 128
Inputs	2
Interface	Serial
Mounting Type	Through Hole
Resolution	24 Bits
Tape & Reel	True

View Similar Products (0)

AD7710ARZ-REEL7 Description

Short technical summary and product information.

The AD7710ARZ-REEL7 by ADI Electronics is a complete analog front end for low-frequency measurement applications. This charge balancing ADC offers up to 24 bits of resolution with no missing codes and a nonlinearity of 0.0015% typical.

It features a 2-channel programmable gain front end with gains ranging from 1 to 128, differential inputs, and a low-pass filter with programmable cutoffs. The device includes a bidirectional microcontroller serial interface, internal/external reference option, and single or dual-supply operation. Power consumption is typically 25 mW, with a power-down mode reducing it to 7 mW.

Applications include weigh scales, thermocouples, process control, smart transmitters, and chromatography. The AD7710ARZ-REEL7 is available in 24-lead DIP and 24-lead SOIC packages, suitable for through-hole mounting.

This ADC is ideal for microcontroller-based systems, allowing software configuration of input channel selection, gain settings, and signal polarity. It also supports self-calibration, system calibration, and background calibration options.

AD7710ARZ-REEL7 Quick Information

Product Type: Analog to Digital Converter

Canonical Name: AD7710 Analog to Digital Converter

Subcategory: ADC

AD7710ARZ-REEL7 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AD7710ARZ-REEL7 Estimated Pricing

Qty	Low	High
1+	$29.75	$29.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD7710ARZ-REEL7 Features

24-bit resolution with no missing codes.
Programmable gain front end from 1 to 128.
Low power consumption, typically 25 mW.
Bidirectional microcontroller serial interface.
Available in DIP and SOIC packages.

AD7710ARZ-REEL7 Applications

Ideal for weigh scale applications.
Suitable for thermocouple measurements.
Used in process control systems.
Applicable for smart transmitters.
Designed for chromatography systems.

AD7710ARZ-REEL7 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resolution of the AD7710ARZ-REEL7?

The AD7710ARZ-REEL7 offers 24 bits of resolution with no missing codes.

What is the nonlinearity of the AD7710ARZ-REEL7?

The nonlinearity of the AD7710ARZ-REEL7 is 0.0015% typical.

What is the typical power consumption of the AD7710ARZ-REEL7?

The typical power consumption of the AD7710ARZ-REEL7 is 25 mW.

What is the power consumption in power-down mode?

In power-down mode, the AD7710ARZ-REEL7 consumes 7 mW typical.

What are the programmable gain options for the AD7710ARZ-REEL7?

The AD7710ARZ-REEL7 has programmable gains ranging from 1 to 128.

What type of interface does the AD7710ARZ-REEL7 use?

The AD7710ARZ-REEL7 features a bidirectional microcontroller serial interface.

What are the available supply options for the AD7710ARZ-REEL7?

The AD7710ARZ-REEL7 supports single or dual-supply operation.
