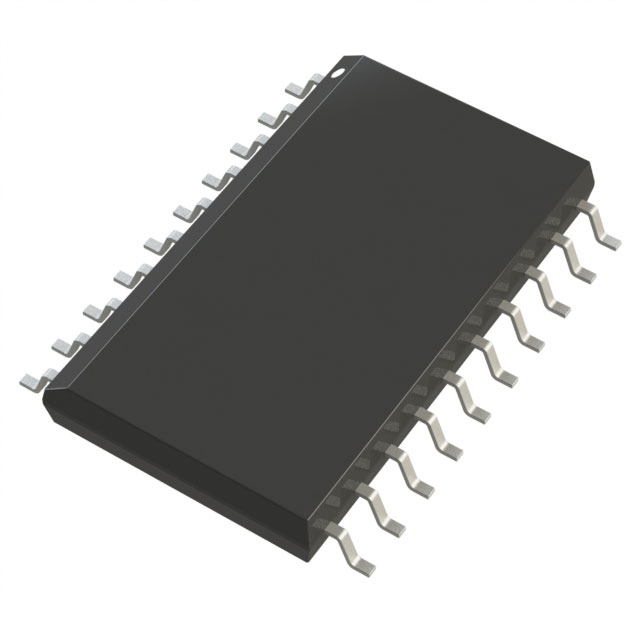

The AD7548JRZ is a 12-bit digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This component is designed for data acquisition applications and offers a current, unbuffered output type with a parallel data interface. It operates with an external reference voltage.
Key electrical specifications include a 12-bit resolution and a typical settling time of 1.5µs. The device supports analog and digital supply voltages ranging from 5V up to 15.75V. Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) are specified at a maximum of ±1 LSB. The architecture is R-2R.
This DAC operates within a temperature range of 0°C to 70°C. It is housed in a 20-SOIC package, suitable for surface mounting. The component is supplied in tape and reel packaging.
Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 bits.
1.5µs typical.
Parallel.
0°C to 70°C.
20-SOIC (0.295, 7.50mm Width).
5V to 15.75V.
R-2R.
