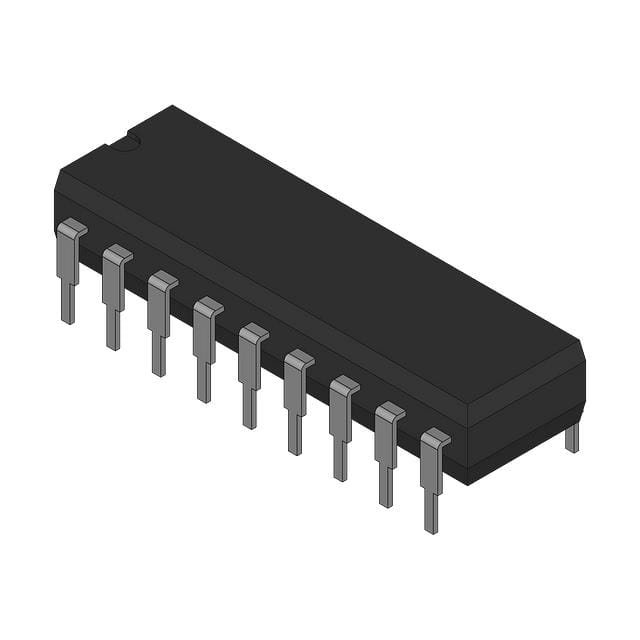

AD7541JN The Intersil AD7541JN is a 12-bit multiplying Digital to Analog Converter (DAC) with a parallel data interface. It operates within a voltage range of 5V to 16V.
Mfr Part #:

AD7541JN

Available from 1 distributors
Mfr Name: Intersil
Intersil
The Intersil AD7541JN is a 12-bit multiplying Digital to Analog Converter (DAC) with a parallel data interface. It operates within a voltage range of 5V to 16V.
✓ Total Stock: 5,750 pcs

AD7541JN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,750 pcs
On Request
5750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD7541JN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Lead Spacing
Lead Style
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

AD7541JN Description

Short technical summary and product information.

The Intersil AD7541JN is a 12-bit multiplying Digital to Analog Converter (DAC) designed for various data acquisition applications. It features an R-2R architecture and an external reference type, providing an unbuffered current output.



Key electrical specifications include a 12-bit resolution, a settling time of 1µs, and an operating voltage range of 5V to 16V. The device operates within a temperature range of 0°C to 70°C and utilizes a parallel data interface.



This DAC is packaged in an 18-PDIP through-hole configuration, making it suitable for breadboarding and through-hole PCB assembly. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.



Applications for the AD7541JN can be found in systems requiring precise digital-to-analog conversion where a 12-bit resolution and current output are needed.

AD7541JN Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: AD7541JN 12-Bit Multiplying DAC
Subcategory: DAC

AD7541JN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD7541JN Features

  • 12-bit resolution multiplying DAC
  • Operates from 5V to 16V supply
  • 1µs fast settling time
  • Through Hole mounting package
  • RoHS3 Compliant status

AD7541JN Applications

  • Digitally controlled gain and attenuation.
  • Waveform and function generators.
  • Analog signal processing circuits.
  • Automatic test equipment (ATE) systems.
  • Microcontroller-based analog output stages.

AD7541JN FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD7541JN?

The AD7541JN has a 12-bit resolution.

What is the settling time of the AD7541JN?

The settling time is 1µs.

What is the operating voltage range for the AD7541JN?

The operating voltage range is 5V to 16V.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C.

What package does the AD7541JN use?

The AD7541JN uses a through-hole 18-pin PDIP (0.300", 7.62mm) package.

Is the AD7541JN RoHS compliant?

RoHS compliance is marked as RoHS3 compliant, but this data is unverified and low confidence.
