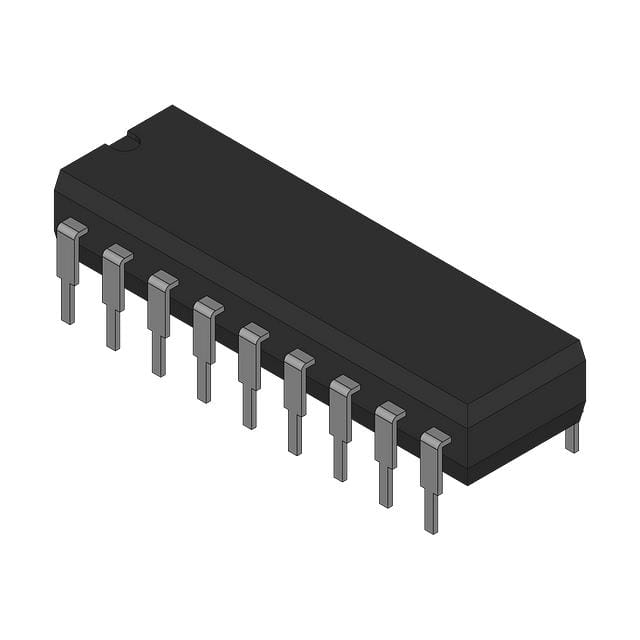

AD7541BD The AD7541BD is a 12-bit multiplying DAC from Harris Semiconductor featuring a parallel interface, 1µs settling time, and current-unbuffered output. It comes in a through-hole 18-PDIP package.
Mfr Part #:

AD7541BD

Available from 1 distributors
Mfr Name: Harris Semiconductor
Harris Semiconductor
The AD7541BD is a 12-bit multiplying DAC from Harris Semiconductor featuring a parallel interface, 1µs settling time, and current-unbuffered output. It comes in a through-hole 18-PDIP package.
✓ Total Stock: 6,000 pcs

AD7541BD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD7541BD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD7541BD Description

Short technical summary and product information.

The AD7541BD is a 12-bit digital-to-analog converter (DAC) manufactured by Harris Semiconductor. It utilizes a multiplying DAC architecture with R-2R ladder network and provides an unbuffered current output. The device accepts an external reference voltage and operates from a single supply voltage in the range of 5V to 16V. With a settling time of 1 µs, it is suitable for applications requiring moderate speed conversion. The parallel data interface allows for simple connection to microcontrollers or digital systems. The converter is specified for commercial temperature range from 0°C to 70°C. The AD7541BD is housed in an 18-pin DIP (0.300" width) through-hole package, designated as 18-PDIP. This packaging is suitable for prototyping and through-hole PCB assembly. The device is a single-channel DAC with 12-bit resolution, providing 4096 discrete output levels. As a multiplying DAC, it can be used in applications such as programmable gain amplifiers, digitally controlled attenuators, and waveform generation. The current output is unbuffered, requiring an external operational amplifier for voltage output conversion.

AD7541BD Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: AD7541BD 12-Bit Multiplying DAC
Subcategory: Multiplying DAC

AD7541BD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD7541BD Features

  • 12-bit resolution with multiplying DAC architecture.
  • Fast 1 µs settling time for dynamic applications.
  • Parallel data interface for easy digital connection.
  • External reference and 5V to 16V supply range.
  • Through-hole 18-PDIP package for prototyping.

AD7541BD Applications

  • Ideal for programmable gain amplifier circuits.
  • Suitable for digitally controlled attenuators and filters.
  • Used in waveform generation and function generators.
  • Applicable in industrial control and instrumentation.

AD7541BD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD7541BD?

12 bits.

What is the settling time of the AD7541BD?

1 µs.

What is the architecture of the AD7541BD?

Multiplying DAC, R-2R.

What is the supply voltage range of the AD7541BD?

5V to 16V.

What is the operating temperature range of the AD7541BD?

0°C to 70°C.

What is the package type of the AD7541BD?

18-DIP (0.300", 7.62mm) / 18-PDIP.

Is the AD7541BD RoHS compliant?

The RoHS status is listed as RoHS3 compliant, but this information is unverified.
