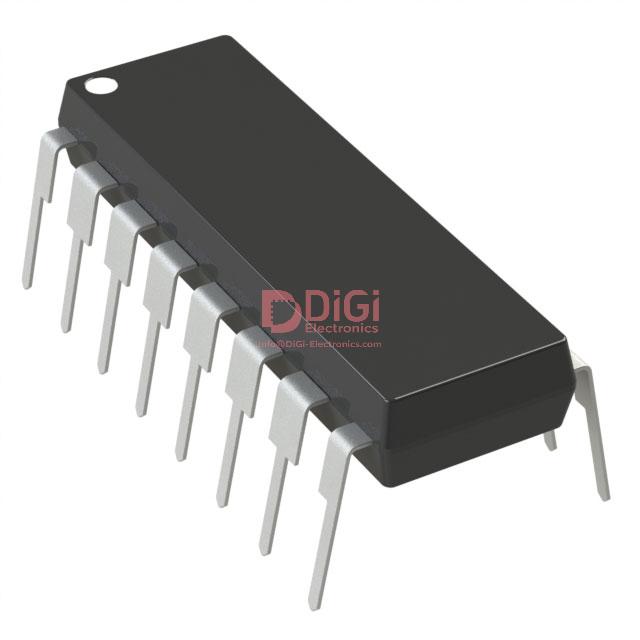

AD7533JN The Analog Devices AD7533JN is a 10-bit, 4-quadrant multiplying DAC. It features a parallel data interface and operates on supply voltages from 5V to 15V.
Mfr Part #:

AD7533JN

Available from 3 distributors
Mfr Name: AD
AD
The Analog Devices AD7533JN is a 10-bit, 4-quadrant multiplying DAC. It features a parallel data interface and operates on supply voltages from 5V to 15V.
✓ Total Stock: 2,278 pcs
$ Price Range: $3.86

AD7533JN Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,212 pcs
On Request
2212 pcs On Request 1 On Request On Request 97+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
58 pcs
On Request
58 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD7533JN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Linearity
Mounting Type
Number of Bits
Operating Temperature
Output Type
Reference Type
Settling Time
Storage Temperature
Supplier Device Package
Tape & Reel
View Similar Products (0)

AD7533JN Description

Short technical summary and product information.

The AD7533JN from Analog Devices is a cost-effective, 10-bit, 4-quadrant multiplying digital-to-analog converter (DAC). Manufactured using an advanced thin-film-on-monolithic-CMOS process, it is pin and function equivalent to the industry-standard AD7520. This DAC is designed for applications requiring precise digital control of analog signals.



Key electrical specifications include a 10-bit resolution, a settling time of 800ns, and an unbuffered current output. It supports a parallel data interface and requires an external voltage reference. The device operates over a wide analog and digital supply voltage range of 5V to 15V. Linearity error is specified as ±1 LSB maximum (INL/DNL).



The AD7533JN is housed in a 16-PDIP package and is designed for through-hole mounting. Its operating temperature range is -40°C to 85°C. This component is suitable for applications such as digitally controlled attenuators, programmable gain amplifiers, and function generation.

AD7533JN Quick Information

Product Type: Digital to Analog Converter
Canonical Name: AD7533JN 10-Bit Multiplying DAC
Subcategory: DAC

AD7533JN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD7533JN Estimated Pricing

Qty Low High
1+ $3.86 $3.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD7533JN Features

  • 10-bit resolution multiplying DAC.
  • Full 4-quadrant multiplying capability.
  • CMOS/TTL direct interface.
  • Operates on 5V to 15V power.
  • 16-PDIP through-hole package.

AD7533JN Applications

  • Digitally controlled attenuators.
  • Programmable gain amplifiers.
  • Function generation circuits.
  • Linear automatic gain controls.

AD7533JN FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD7533JN DAC?

The AD7533JN has a resolution of 10 bits.

What is the settling time for the AD7533JN?

The settling time for the AD7533JN is 800ns.

What supply voltages can the AD7533JN operate on?

The AD7533JN can operate on analog and digital supply voltages ranging from 5V to 15V.

What is the package type for the AD7533JN?

The AD7533JN is available in a 16-PDIP package designed for through-hole mounting.

What is the operating temperature range of the AD7533JN?

The AD7533JN operates in a temperature range of -40°C to 85°C.
