AD7524SQ The AD7524SQ is an 8-bit digital-to-analog converter from Analog Devices with parallel data interface, 500ns settling time, and R-2R architecture. It comes in a 16-CDIP through-hole package.
Mfr Part #:

AD7524SQ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD7524SQ is an 8-bit digital-to-analog converter from Analog Devices with parallel data interface, 500ns settling time, and R-2R architecture. It comes in a 16-CDIP through-hole package.
✓ Total Stock: 8,777 pcs

AD7524SQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,777 pcs
On Request
8777 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD7524SQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD7524SQ Description

Short technical summary and product information.

The AD7524SQ is an 8-bit monolithic CMOS digital-to-analog converter designed for direct microprocessor interface. It features an R-2R architecture with current-unbuffered output and differential output capability. The device includes on-chip data latches for easy bus interfacing and is compatible with TTL and CMOS logic levels.



Key electrical specifications include a settling time of 500 ns, integral nonlinearity of ±0.5 LSB, and a supply voltage range of 5V to 15V. The operating temperature range spans -55°C to 125°C, making it suitable for industrial and military applications. The external reference type allows flexible voltage scaling.

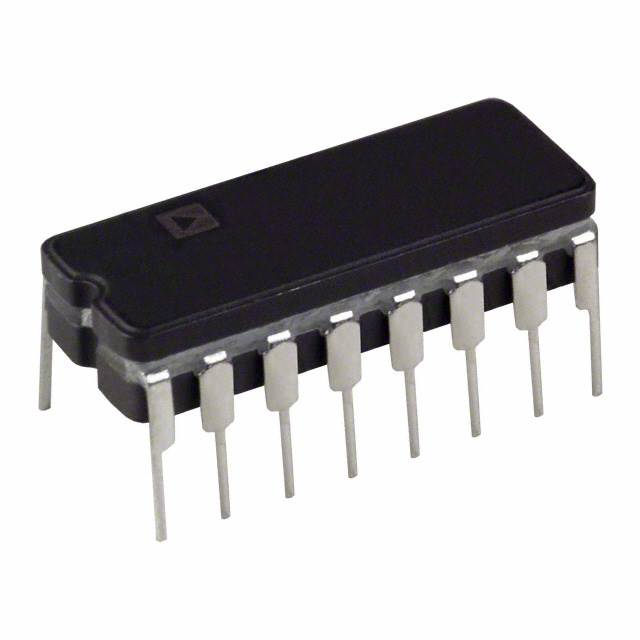

The AD7524SQ is packaged in a 16-lead CDIP (0.300", 7.62mm) ceramic dual-in-line package with through-hole mounting. The supplier device package is 16-CERDIP. This DAC is ideal for microprocessor-controlled gain circuits, attenuators, function generation, and precision AGC systems.

AD7524SQ Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: AD7524SQ 8-Bit Digital to Analog Converter
Subcategory: 8-Bit DAC

AD7524SQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD7524SQ Features

  • 8-bit resolution with R-2R architecture.
  • Parallel data interface with on-chip latches.
  • 500 ns typical settling time.
  • Differential current output.
  • Wide supply range 5V to 15V.

AD7524SQ Applications

  • Microprocessor-controlled gain circuits.
  • Precision AGC circuits.
  • Bus-structured instruments.
  • Function generation.

AD7524SQ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD7524SQ?

8 bits.

What is the settling time of the AD7524SQ?

500 ns.

What is the supply voltage range for the AD7524SQ?

5V to 15V.

What is the operating temperature range of the AD7524SQ?

-55°C to 125°C.

What package does the AD7524SQ come in?

16-CDIP (0.300", 7.62mm) through-hole package.

Is the AD7524SQ RoHS compliant?

Listed as RoHS3 Compliant but unverified.

What is the architecture of the AD7524SQ?

R-2R.
