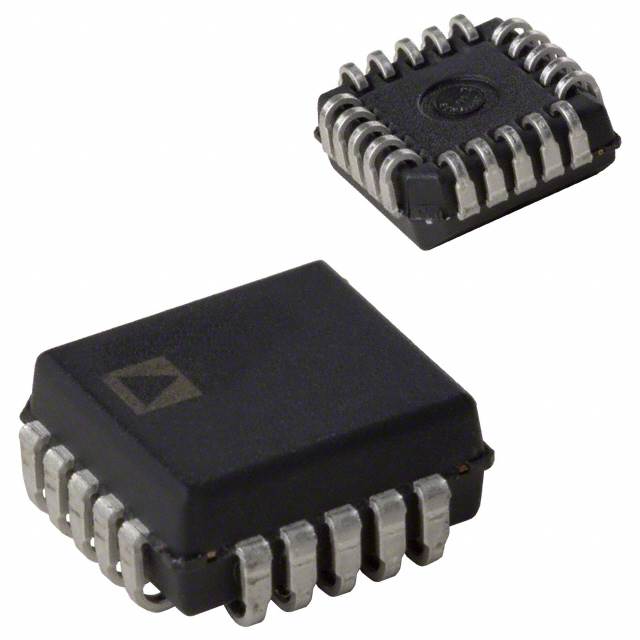

The AD7524JPZ is an 8-bit digital-to-analog converter (DAC) manufactured by Analog Devices, Inc. This multiplying DAC utilizes an R-2R architecture and provides an unbuffered current output. It features a parallel data interface and requires an external reference voltage. The device operates with analog and digital supply voltages ranging from 5V to 15V.
With a settling time of 250ns, the AD7524JPZ is suitable for various data acquisition applications. It has an integral non-linearity (INL) and differential non-linearity (DNL) of 0.5 LSB maximum. The operating temperature range is -40C to 85C.
The AD7524JPZ is available in a 20-PLCC (9x9) package and is designed for surface mounting. Its specifications make it a versatile component for applications requiring precise digital-to-analog conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 bits.
250ns.
Analog and digital supply voltage range is 5V to 15V.
20-LCC (J-Lead) with supplier device package 20-PLCC (9x9).
-40°C to 85°C.
Parallel.
Yes, it uses Multiplying DAC, R-2R architecture.
