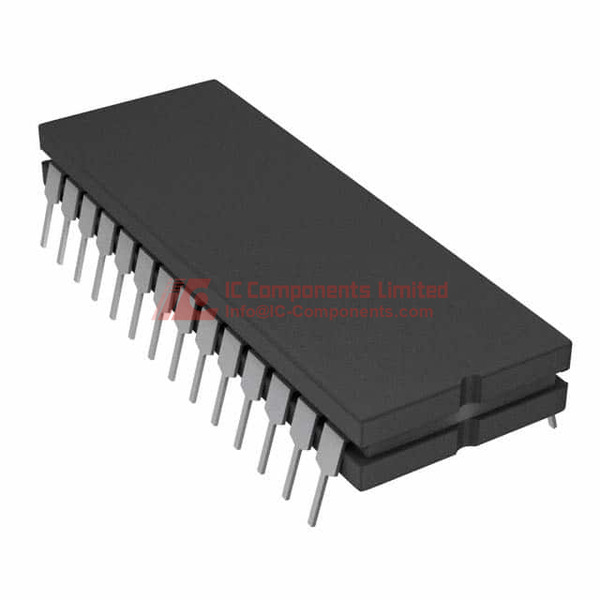

The AD7506SQ/883B is an analog multiplexer/demultiplexer IC manufactured by Analog Devices Inc. This component is designed for 16:1 switching applications.
Key electrical specifications include a maximum on-state resistance of 450 Ohms and channel-to-channel matching of 18 Ohms typical. It operates with dual supplies up to ±15V. The switch times are fast, with a maximum turn-on time of 1.5µs and turn-off time of 1µs.
This device is housed in a 28-CDIP through-hole package, suitable for various mounting requirements. The operating temperature range is extensive, from -55°C to 125°C, making it suitable for demanding environments. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7506SQ/883B operates on dual ±15V supplies.
It comes in a 28-lead CDIP (0.600 inch, 15.24mm) package and is through-hole mount.
The device operates from -55°C to +125°C.
The maximum on-resistance is 450 Ohms, with typical channel-to-channel matching of 18 Ohms.
Turn-on time is 1.5µs maximum and turn-off time is 1µs maximum.
It is a single 16:1 multiplexer, providing one output from 16 inputs.
Typical off-state input capacitance is 5pF, output capacitance is 40pF.
