The AD7398BR from Analog Devices is a quad, 12-bit voltage output digital-to-analog converter (DAC) designed for single (3 V to 5 V) or dual (±5 V) supply operation. Built using Analog Devices' CBCMOS process, this monolithic DAC offers ease of use in various systems.
Key electrical specifications include a 12-bit resolution, an SPI-compatible 3-wire serial interface, and an external reference type. The device provides buffered voltage output and operates over a supply voltage range of 2.7V to 5.5V. It features a settling time of 6µs (typical) and an integral non-linearity (INL) of ±1.5 (Max).

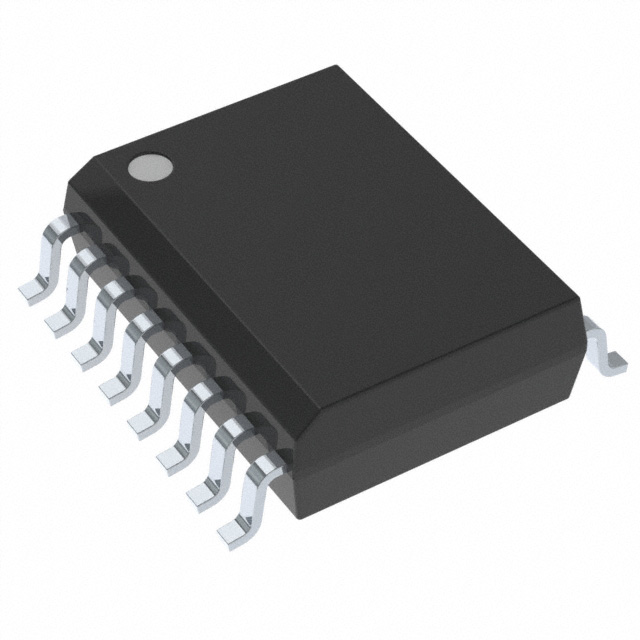

The AD7398BR is housed in a 16-SOIC package, suitable for surface mount applications. It operates within an extended temperature range of -40°C to 125°C. The DAC family offers programmable power shutdown and an internal power-on reset feature.
Applications for the AD7398BR include automotive output voltage span, portable communications, digitally controlled calibration, and PC peripherals.
The AD7398BR has a resolution of 12-bit.
The AD7398BR uses an SPI-compatible serial interface.
The AD7398BR operates from a supply voltage of 2.7V to 5.5V.
The AD7398BR operates between -40°C and 125°C.
The AD7398BR is designed for surface mount installation.
The AD7398BR is supplied in a 16-SOIC package.
The typical settling time for the AD7398BR is 6µs.
