| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Settling Time | |
| Slew Rate | |
| Supplier Device Package |
The AD734SQ/883B is a high accuracy, high speed four-quadrant analog multiplier/divider manufactured by Analog Devices. It provides a low impedance voltage output with a full power (20 V p-p) bandwidth of 10 MHz. Total static error (scaling, offsets, and nonlinearities combined) is 0.1% of full scale.
Key electrical characteristics include a typical slew rate of 450 V/µs, settling time of 200 ns to 0.1% at full power, and low distortion of -80 dBc from any input. The device achieves a signal-to-noise ratio of 94 dB from 10 Hz to 20 kHz and 70 dB from 10 Hz to 10 MHz.

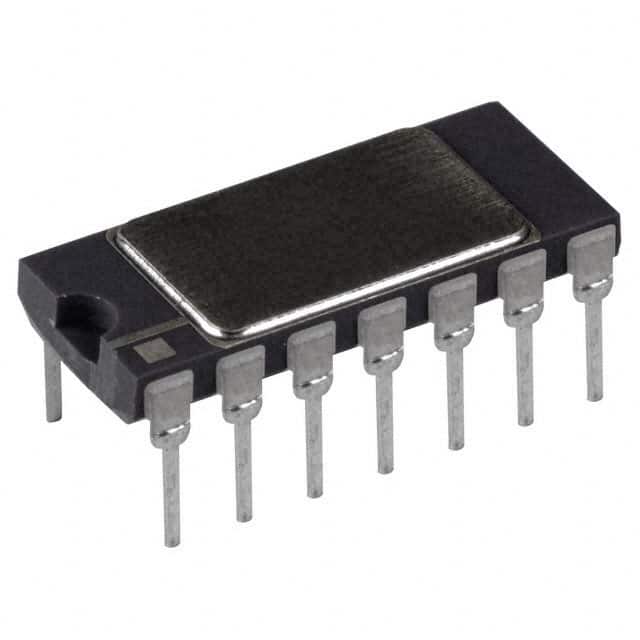

The AD734SQ/883B is housed in a 14-lead CERDIP package (14-CDIP, 0.300" lead spacing) and is designed for through-hole mounting. It is pin compatible with the industry-standard AD534 and provides the transfer function W = XY/U.
The full power bandwidth is 10 MHz (20 V p-p typical).
The package is 14-CDIP (0.300", 7.62mm) with a supplier device package of 14-CERDIP.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
The typical slew rate is 450 V/µs.
The settling time is 200 ns typical to 0.1% at full power.
