| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 1715 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Reference Type | |
| Supplier Package |
The AD7265BCPZ from Analog Devices Inc. is a 12-bit Analog to Digital Converter (ADC) designed for high-performance data acquisition applications. It offers a fast sampling rate of 1M Samples/s, enabling efficient conversion of analog signals.
This ADC supports multiple input types including differential, pseudo-differential, and single-ended signals, providing flexibility for various system designs. It features two SAR ADCs and utilizes both external and internal reference types. The device operates with analog and digital supply voltages ranging from 2.7V to 5.25V.
Packaged in a 32-VFQFN exposed pad, CSP, the AD7265BCPZ is designed for surface mounting. Its operating temperature range is from -40°C to 125°C, making it suitable for demanding environmental conditions. The interface options include SPI and DSP, facilitating integration into digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The analog and digital supply voltage range is 2.7V to 5.25V.

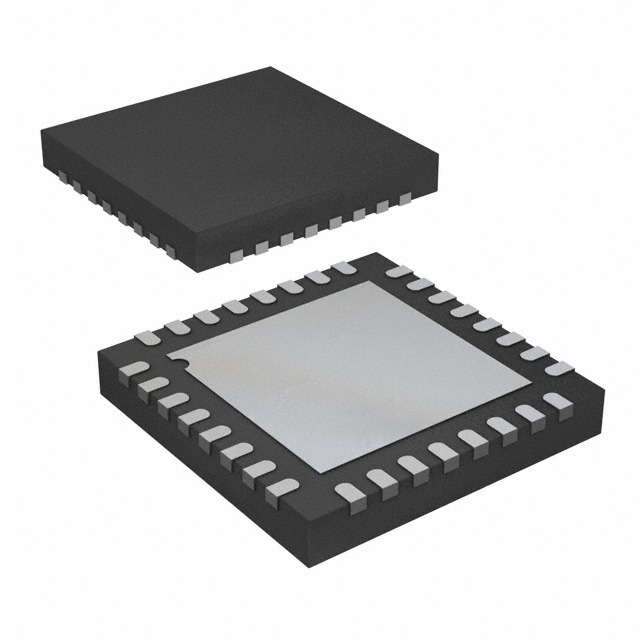

The AD7265BCPZ is available in a 32-VFQFN Exposed Pad, CSP package (32-LFCSP-VQ (5x5mm)).
The operating temperature range is -40°C to 125°C.
12 bits.
1 million samples per second (1MSPS).
It supports 6 or 12 input channels, configurable as differential, pseudo-differential, or single-ended.
Yes, it features two internal ADCs for simultaneous sampling of multiple channels.
