| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| SVHC Present | |
| Settling Time |

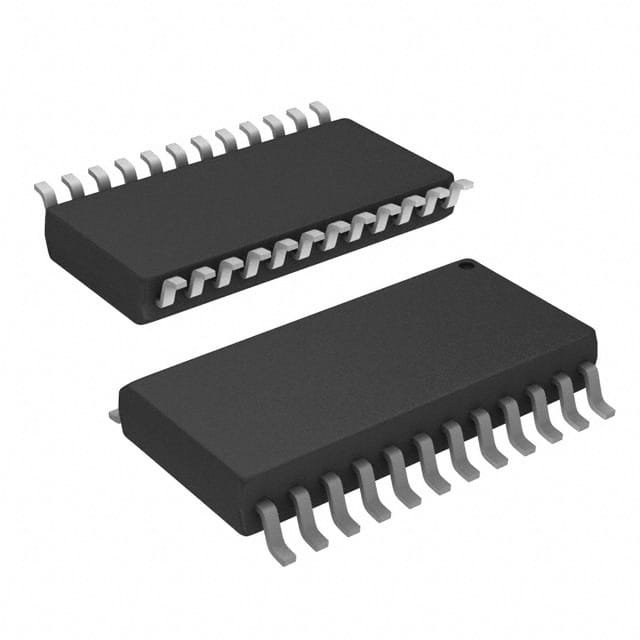

The AD7247ABRZ from Analog Devices Inc. is a 12-bit dual digital-to-analog converter (DAC) designed for data acquisition applications. This component offers a buffered voltage output and utilizes a parallel data interface for communication.
Key electrical specifications include a 12-bit resolution and two digital-to-analog converters per channel. The device operates with analog supply voltages between ±10.8V and ±16.5V, and digital supply voltages from 10.8V to 16.5V. It has a settling time of 8µs and features both external and internal reference types. The integral and differential linearity (INL/DNL) are specified at ±0.5 LSB (Max) and ±0.9 LSB (Max), respectively.
The AD7247ABRZ is housed in a 24-SOIC package, suitable for surface mounting. Its operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 3.
This DAC is designed for applications requiring precise digital-to-analog conversion, such as signal generation, control systems, and instrumentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7247ABRZ has a resolution of 12 bits.
It contains two independent DAC channels.
It provides a buffered voltage output.
-40°C to 85°C.
24-SOIC surface mount package.
Parallel interface.
Both external and internal reference are supported.
