| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Failure Rate | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Package / Case | |
| Power Consumption | |
| Programmable | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package |

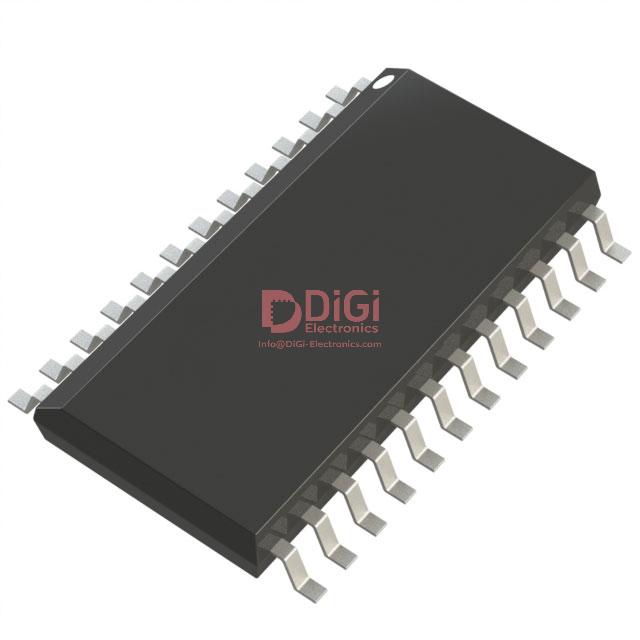

The AD7247ABR from Analog Devices is a complete dual 12-bit voltage output digital-to-analog converter integrated onto a single CMOS chip. It includes on-chip voltage references and output amplifiers, eliminating the need for external trims.
This DAC features a parallel data interface, making it compatible with many microprocessors. It operates with analog and digital supply voltages ranging from 10.8V to 16.5V. The device offers a settling time of 8µs and includes features like buffered voltage output and selectable reference types (external or internal).
Packaged in a 24-SOIC surface-mount configuration, the AD7247ABR is designed for applications requiring precise digital-to-analog conversion. Its architecture is R-2R, and it operates within a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7247ABR is a 12-bit digital-to-analog converter.
The AD7247ABR features two digital-to-analog converter channels.
The settling time for the AD7247ABR is 8µs.
The AD7247ABR provides a buffered voltage output.
The AD7247ABR uses a parallel data interface.
The analog supply voltage range is ±10.8V to 16.5V, and the digital supply voltage range is 10.8V to 16.5V.
The AD7247ABR operates within a temperature range of -40°C to 85°C.
