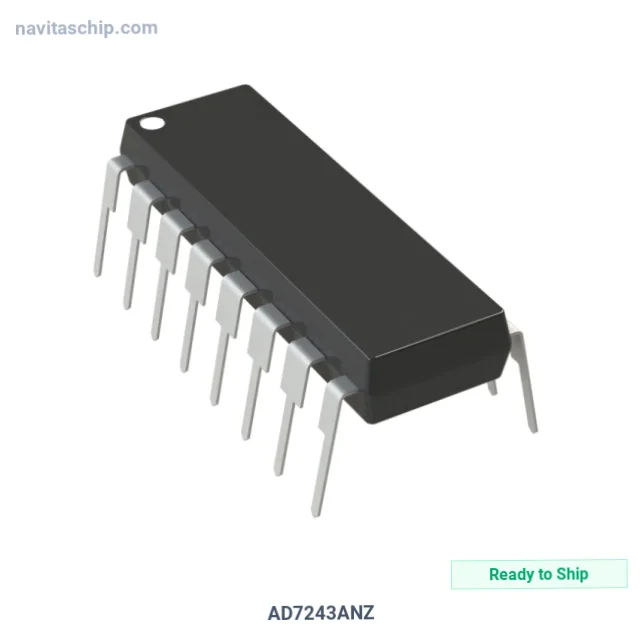

The AD7243ANZ is a 12-bit digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This component provides a voltage output and utilizes an R-2R architecture. It supports both external and internal reference types and interfaces via SPI.
Key electrical specifications include a supply voltage range of ±10.8V to 16.5V for analog circuits, with integral and differential non-linearity typically within ±1 LSB and ±0.9 LSB, respectively. The settling time is approximately 10µs.
Designed for through-hole mounting, the AD7243ANZ comes in a standard 16-PDIP package with dimensions of 0.300 inches (7.62mm). It operates reliably within an ambient temperature range of -40°C to 85°C.
This DAC is RoHS3 compliant and REACH unaffected, with a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7243ANZ has 12-bit resolution.
The AD7243ANZ has 1 channel.
The settling time is 10µs typical.
The operating temperature range is -40°C to +85°C.
The AD7243ANZ is available in a 16-DIP (0.300", 7.62mm) through-hole package.
The analog supply voltage range is ±10.8V to 16.5V.
The interface type is SPI.
