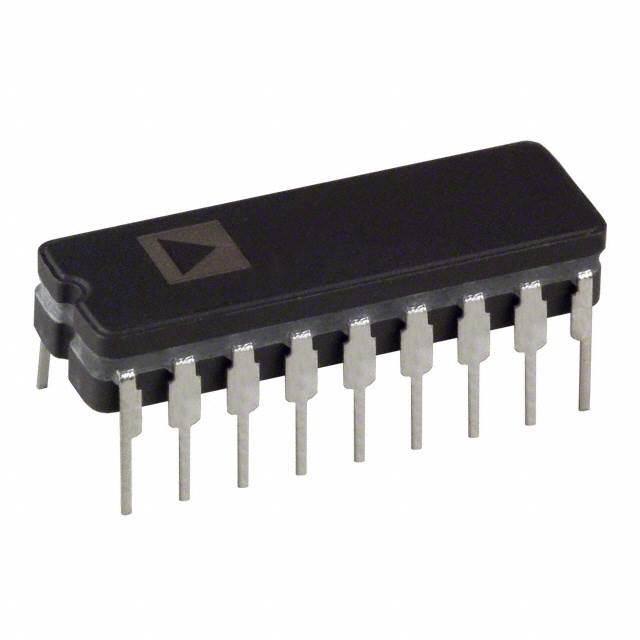

AD7224CQ The AD7224CQ is an 8-bit voltage-output digital-to-analog converter with a parallel interface and output amplifier, housed in an 18-pin CDIP package.
Mfr Part #:

AD7224CQ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD7224CQ is an 8-bit voltage-output digital-to-analog converter with a parallel interface and output amplifier, housed in an 18-pin CDIP package.
✓ Total Stock: 4,000 pcs

AD7224CQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD7224CQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Industrial Grade
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD7224CQ Description

Short technical summary and product information.

The AD7224CQ is a precision 8-bit voltage-output digital-to-analog converter (DAC) manufactured by Analog Devices / Maxim Integrated. It features a parallel data interface and requires an external voltage reference. The output type is voltage-buffered and is not differential.



This device uses an R-2R resistor ladder architecture and delivers a settling time of 20 µs. Integral nonlinearity (INL) is ±0.5 LSB (max), and differential nonlinearity (DNL) is ±1 LSB (max). The supply voltage range is 14.25 V to 15.75 V. It operates over a temperature range of -40°C to +85°C, making it suitable for extended temperature applications.



The part is available in an 18-pin CDIP (0.300", 7.62mm) package with through-hole mounting. The supplier device package is 18-CERDIP. It is designed for single or dual supply operation and is microprocessor-compatible with double-buffered inputs, allowing simultaneous updates in multi-DAC systems.

AD7224CQ Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: AD7224CQ LC2MOS 8-Bit DAC with Output Amplifier
Subcategory: 8-Bit Voltage-Output DAC

AD7224CQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD7224CQ Features

  • 8-bit resolution with voltage-buffered output.
  • Parallel data interface for easy connectivity.
  • R-2R ladder architecture ensures monotonicity.
  • 20 µs settling time for fast conversion.
  • Wide operating temperature range from -40°C to +85°C.

AD7224CQ Applications

  • Suitable for industrial process control systems.
  • Used in precision instrumentation and data acquisition.
  • Ideal for microprocessor-controlled analog output stages.
  • Applicable in automatic test equipment (ATE).
  • Used in closed-loop servo control systems.

AD7224CQ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD7224CQ?

The AD7224CQ has a resolution of 8 bits.

What is the settling time of the AD7224CQ?

The settling time is 20 µs.

What is the operating temperature range?

The AD7224CQ operates from -40°C to +85°C.

What package type is the AD7224CQ available in?

The AD7224CQ comes in an 18-pin CDIP (0.300", 7.62mm) with through-hole mounting.

What is the supply voltage range for the AD7224CQ?

The supply voltage range is 14.25 V to 15.75 V.

Does the AD7224CQ require an external reference?

Yes, the reference type is external.
