| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
131 pcs
|
131 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Noise | |
| Operating Temperature Range | |
| SVHC Present | |
| Settling Time | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel |

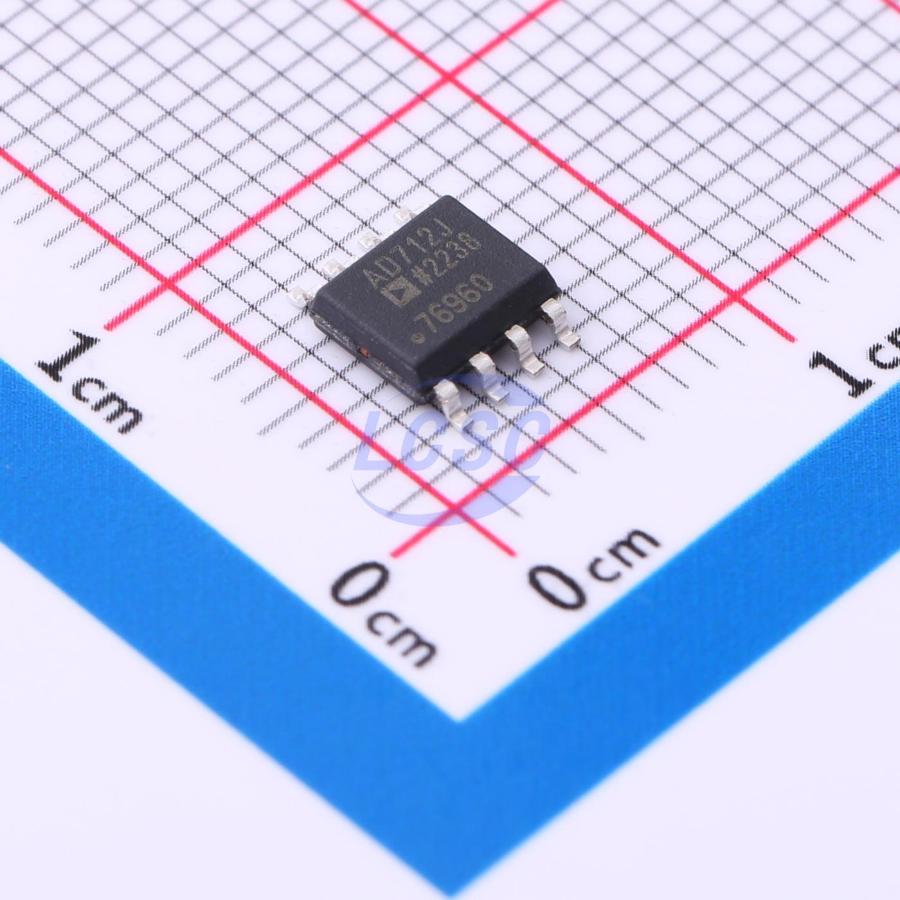

The AD712JRZ-REEL from Analog Devices is a high-speed, precision monolithic operational amplifier designed for high performance at a modest price. It features advanced laser wafer trimming for very low offset voltage and drift, making it an ideal upgrade for older BiFET or bipolar op amps.
With a minimum slew rate of 16 V/µs and a settling time of 1 µs to ±0.01%, the AD712JRZ-REEL is well-suited for buffering 12-bit D/A and A/D converters, high-speed integrators, and photo-diode preamps due to its excellent noise performance and low input current. It boasts a typical unity gain bandwidth of 3 MHz and a -3dB bandwidth of 4 MHz.
This operational amplifier operates over a supply voltage range of 9 to 36 V and has a typical quiescent current of 2.8 mA per amplifier. The device is available in an 8-pin SOIC package and is designed for surface mounting, supplied on tape and reel.
The AD712JRZ-REEL is rated for an industrial operating temperature range of -40°C to +85°C. Its common-mode rejection is 88 dB and open-loop gain is 200 V/mV, ensuring 12-bit performance in high-speed unity gain buffer circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.45 | $4.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 9 to 36 V.
The minimum slew rate is 16 V/µs, with a typical value of 20 V/µs.
The minimum unity gain bandwidth is 3 MHz.
The settling time to ±0.01% is 1 µs.
The operating temperature range is -40 to +85 °C.
The AD712JRZ-REEL is available in an 8-pin SOIC package for surface mounting.
