| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Reference Type | |
| SVHC Present | |
| Supplier Package | |
| Tape & Reel |
The AD7124-4BCPZ-RL7 is a high-precision 24-bit Analog to Digital Converter (ADC) manufactured by Analog Devices Inc. This component utilizes a Sigma-Delta architecture, offering excellent resolution for data acquisition applications.
Key electrical specifications include a sampling rate of 19.2kSPS, support for 4 or 7 input channels (differential and single-ended), and an SPI data interface. It operates with analog supply voltages of ±1.8V or 2.7V to 3.6V, and digital supply voltages from 1.65V to 3.6V. The device also includes features like a Programmable Gain Amplifier (PGA) and a temperature sensor.

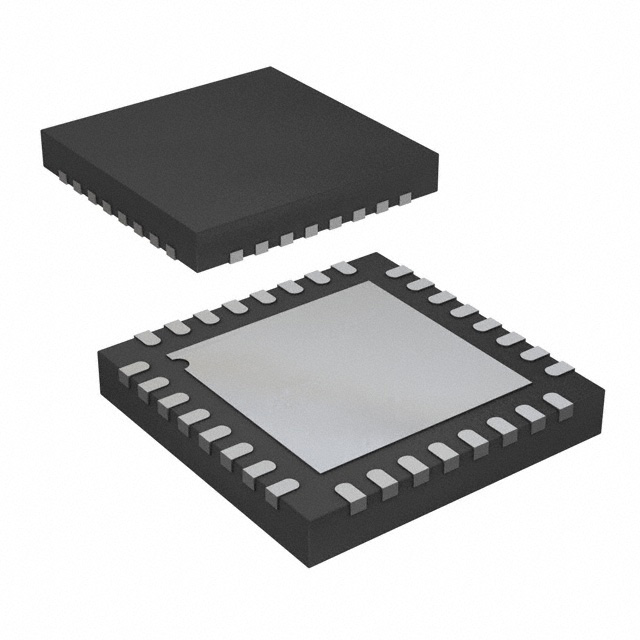

Designed for surface mounting, the AD7124-4BCPZ-RL7 comes in a 32-LFCSP (5x5) package. It operates within a temperature range of -40°C to 105°C, making it suitable for various industrial and environmental conditions. The RoHS status is reported as RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD7124-4BCPZ-RL7 has a resolution of 24 bits.
The sampling rate is 19.2kSPS.
It supports 4 or 7 input channels.
The data interface is SPI.
The operating temperature range is -40°C to 105°C.
The package is 32-LFCSP (5x5) and it is surface mounted.
