| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Supplier Device Package |
The Analog Devices AD711KRZ is a JFET amplifier integrated circuit designed for high-performance amplification tasks. It offers a -3dB bandwidth of 4 MHz and a slew rate of 20V/µs, making it suitable for a range of signal processing applications.
Key electrical characteristics include a low input bias current of 15 pA and an input offset voltage of 200 µV. The device operates with a supply voltage span from 9 V to 36 V and consumes a supply current of 2.5 mA. The output current capability per channel is 25 mA.

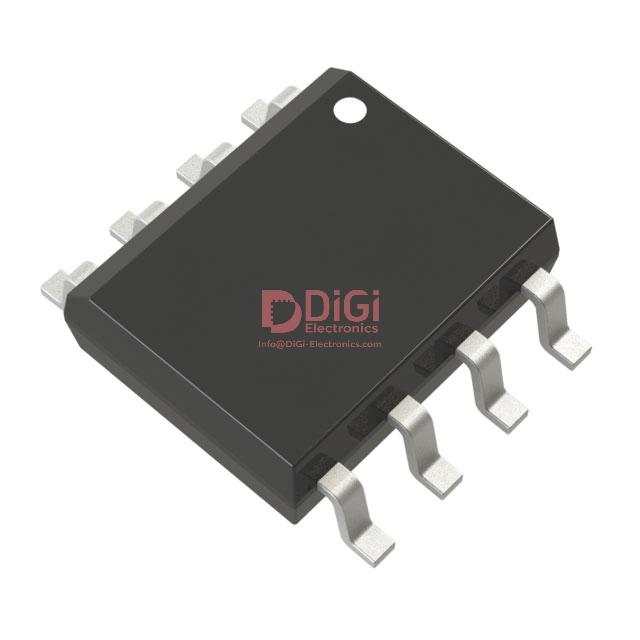

This amplifier is configured with a single circuit and utilizes J-FET technology. It is packaged in an 8-SOIC (Small Outline Integrated Circuit) package, designed for surface mount assembly. The operating temperature range is from 0°C to 70°C, ensuring reliable performance in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0°C to 70°C.
8-SOIC (0.154", 3.90mm Width).
9V to 36V.
4 MHz.
20 V/µs.
15 pA.
200 µV.
