| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Supplier Device Package |
The AD7091RBRMZ from Analog Devices Inc. is a high-performance 12-bit Analog to Digital Converter (ADC) designed for data acquisition applications. It operates with a sampling rate of up to 1 MSPS, making it suitable for capturing fast-changing signals.
This ADC supports both SPI and DSP data interfaces, offering flexibility in system integration. It features a single-ended input and utilizes a Successive Approximation Register (SAR) architecture. The device operates within a wide analog and digital supply voltage range of 2.09V to 5.25V and has an operating temperature range of -40°C to 125°C.

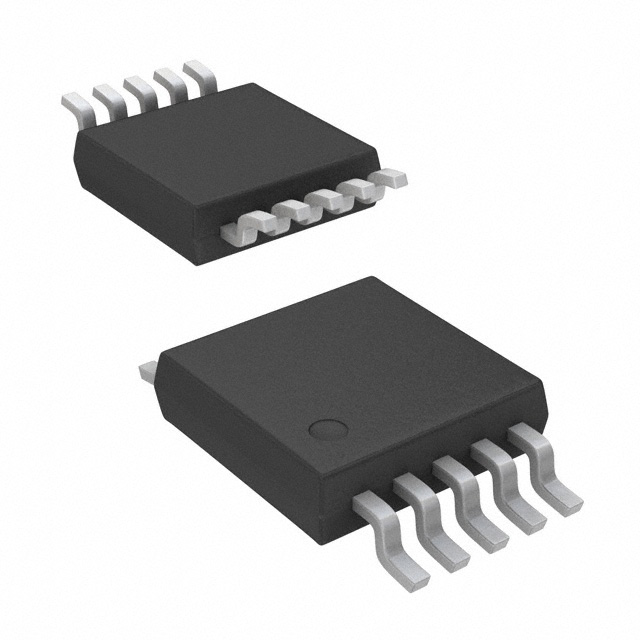

The AD7091RBRMZ is available in a compact 10-MSOP package, designed for surface mounting. Its robust specifications and reliable performance make it a valuable component for various electronic designs requiring accurate analog-to-digital conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resolution is 12 bits.
The sampling rate is 1 MSPS (1 million samples per second).
It has one single-ended input channel.
It supports an SPI/DSP-compatible serial interface.
The architecture is successive approximation register (SAR).
The analog and digital supply voltage range is 2.09V to 5.25V.
The operating temperature range is -40°C to 125°C.
