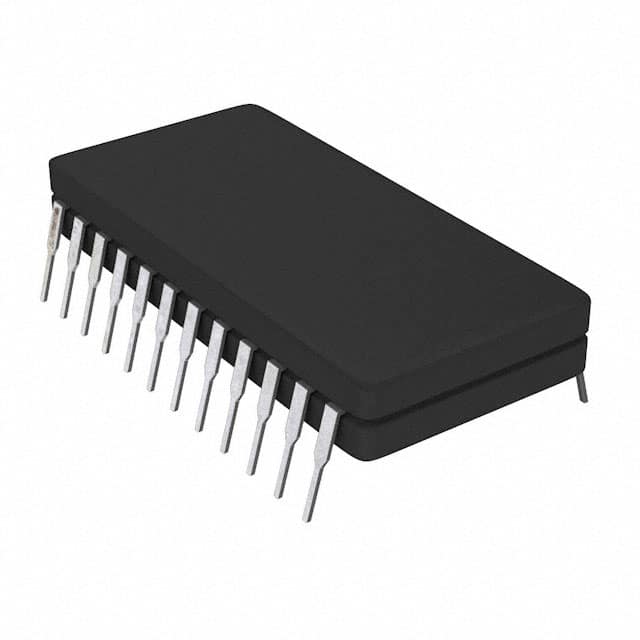

The AD698SQ is a monolithic LVDT signal conditioning subsystem from Analog Devices. It converts mechanical position from a Linear Variable Differential Transformer (LVDT) to a DC voltage output. The device includes an internal oscillator and voltage reference, requiring only a few external passive components to set frequency and gain.
Key specifications include a frequency range of 20 Hz to 20 kHz, typical linearity of 0.05%, gain drift of 20 ppm/°C, and offset drift of 5 ppm/°C. The operating temperature range spans -55°C to 125°C. The AD698SQ operates with half-bridge and 4-wire LVDTs, as well as RVDTs.
The AD698SQ is housed in a 24-CDIP (0.600", 15.24mm) through hole package. It is designed for applications requiring accurate and repeatable position measurement.
-55°C to 125°C
24-CDIP (0.600", 15.24mm) through-hole
20 Hz to 20 kHz
0.05% typical
15 mA
20 ppm/°C typical
5 ppm/°C typical
