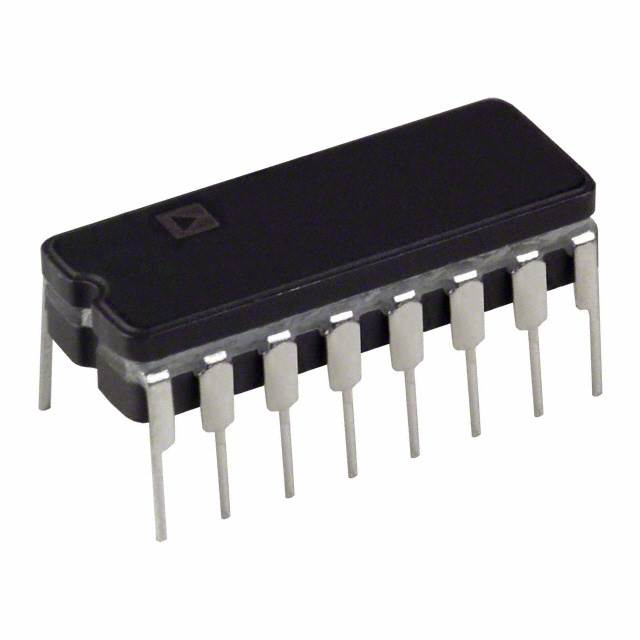

AD688AQ The AD688AQ is a voltage reference IC from Analog Devices Inc. It features a fixed ±10V output voltage with a tolerance of ±0.05%.
Mfr Part #:

AD688AQ

Available from 2 distributors
Mfr Name: AD
AD
The AD688AQ is a voltage reference IC from Analog Devices Inc. It features a fixed ±10V output voltage with a tolerance of ±0.05%.
✓ Total Stock: 3,250 pcs
$ Price Range: $0.99

AD688AQ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 24+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD688AQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

AD688AQ Description

Short technical summary and product information.

The AD688AQ is an integrated circuit from Analog Devices Inc. designed as a voltage reference. It provides a stable and precise ±10V output voltage with a tight tolerance of ±0.05%. This device is capable of supplying up to 10 mA of output current and operates within a wide input voltage range of 12V to 38V.



The AD688AQ has a low temperature coefficient of 3ppm/°C, ensuring stable performance across varying temperatures. It also exhibits low noise characteristics, with 6µVp-p in the 0.1Hz to 10Hz bandwidth. The operating temperature range for this component is -40°C to 85°C.



Packaged in a 16-CERDIP format, the AD688AQ is designed for through-hole mounting. Its RoHS status is non-compliant, and it is classified under REACH Unaffected. The Moisture Sensitivity Level (MSL) is 1 (Unlimited).



This voltage reference IC is suitable for applications requiring a precise and stable voltage source. Its specifications make it a reliable choice for various electronic designs.

AD688AQ Quick Information

Product Type: Voltage Reference IC
Canonical Name: AD688AQ Voltage Reference IC
Subcategory: PMIC - Voltage Reference

AD688AQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD688AQ Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD688AQ Features

  • Fixed ±10V output voltage.
  • ±0.05% output voltage tolerance.
  • Low temperature coefficient of 3ppm/°C.
  • 10 mA maximum output current.
  • Wide operating temperature range.

AD688AQ Applications

  • Precision voltage regulation circuits.
  • Test and measurement equipment.
  • Data acquisition systems.
  • Industrial control systems.

AD688AQ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the AD688AQ?

The AD688AQ has a fixed ±10V output voltage.

What is the output current capability of the AD688AQ?

The AD688AQ can supply up to 10 mA of output current.

What is the tolerance of the AD688AQ voltage reference?

The AD688AQ has a voltage tolerance of ±0.05%.

What is the temperature coefficient of the AD688AQ?

The temperature coefficient for the AD688AQ is 3ppm/°C.

What is the operating temperature range for the AD688AQ?

The AD688AQ operates from -40°C to 85°C.

What package type is the AD688AQ available in?

The AD688AQ is available in a 16-CERDIP package for through-hole mounting.
