The AD677TD/883B is a 16-bit, 100 kSPS sampling analog-to-digital converter from Analog Devices. It uses a successive approximation register (SAR) architecture with on-chip autocalibration to correct internal nonlinearities, ensuring 16-bit no missing codes performance. The device provides a serial data output interface with SCLK and SDATA pins.
Key electrical specifications include a typical integral nonlinearity (INL) of 1 LSB, signal-to-noise and distortion ratio (SINAD) of 92 dB, and total harmonic distortion (THD) of -99 dB. The full power bandwidth is 1 MHz. The converter operates from a 5 V analog supply and a -12 V analog supply, with a 5 V digital supply, and dissipates 450 mW typical with a 10 V reference.

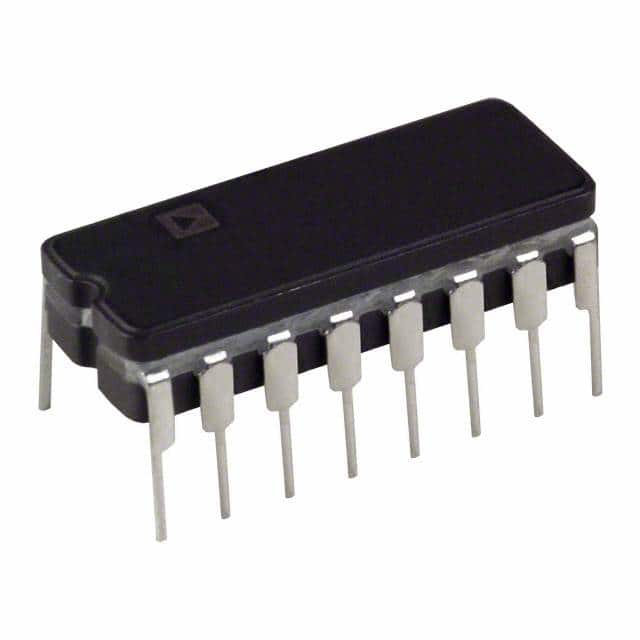

The AD677TD/883B is housed in a 16-pin CDIP (0.300", 7.62mm) ceramic dual in-line package with through-hole mounting. It accepts a single-ended analog input and requires an external voltage reference. The operating temperature range is 0°C to +70°C.
0°C to +70°C.
16-CDIP (0.300", 7.62mm) ceramic dual in-line package.
The datasheet indicates RoHS3 compliant, but this is unverified.
Analog +5V and -12V, digital +5V.
16 bits.
100 kSPS.
Serial interface with SCLK and SDATA.
