| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time |
The Analog Devices Inc. AD667SD is a high-precision, 12-bit digital-to-analog converter (DAC) designed for demanding applications. It provides a buffered voltage output and utilizes a parallel interface for efficient data transfer. The device boasts a fast settling time of 4 microseconds, ensuring quick response to digital inputs.

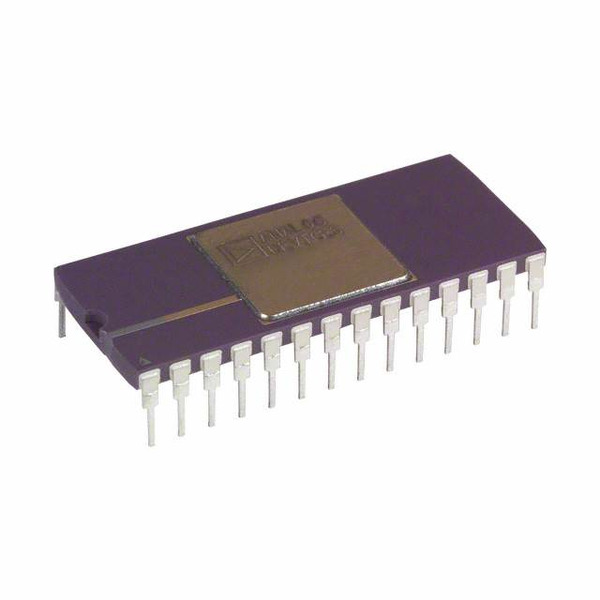

With an operating temperature range from -55°C to 125°C, the AD667SD is suitable for harsh environments. It supports both internal and external reference types and operates with analog supply voltages between ±11.4V and ±16.5V. The DAC is housed in a 28-pin ceramic dual in-line package (CDIP) and is designed for through-hole mounting.
This monolithic DAC employs an R-2R ladder architecture, delivering accurate conversion for various industrial and instrumentation applications. Its integral and differential linearity specifications are ±0.125 LSB and ±0.25 LSB, respectively, ensuring high accuracy.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The settling time for the AD667SD is 4 microseconds.
The AD667SD operates from -55°C to 125°C.
The analog supply voltage range for the AD667SD is ±11.4V to ±16.5V.
The AD667SD is a 12-bit digital-to-analog converter.
The AD667SD is available in a 28-CDIP package.
The AD667SD is designed for through-hole mounting.
