| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Analog Input Bandwidth | |
| Analog Input Range (programmable) | |
| Analog Supply Voltage | |
| Channel Isolation | |
| Clock Divider | |
| Frequency | |
| Function | |
| Lead Spacing | |
| Mounting Type | |
| Output Data Rate | |
| Output Voltage Level (LVDS (ANSI-644 levels)) | |
| Power Consumption (at 185 MSPS) | |
| RF Type | |
| Resolution | |
| Supplier Device Package | |
| sfdr (to 70 MHz at 185 MSPS) | |
| snr (Typical @ NSR disabled, to 70 MHz at 185 MSPS) | |
| snr (Typical @ NSR enabled, 40 MHz band to 70 MHz at 185 MSPS) | |
| snr (Typical @ NSR enabled, 60 MHz band to 70 MHz at 185 MSPS) | |
| snr (Typical @ NSR enabled, 65 MHz band to 70 MHz at 185 MSPS) |

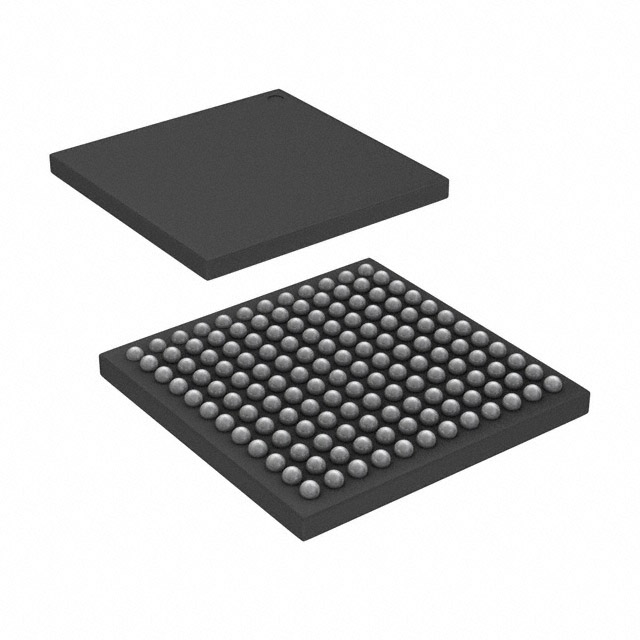

The AD6657ABBCZ from Analog Devices is an 11-bit, 200 MSPS quad channel intermediate frequency (IF) receiver. It is specifically engineered to support multiple antenna systems in telecommunication applications where high dynamic range performance, low power, and small size are critical.
Key electrical specifications include an 11-bit resolution and a 200 MSPS output data rate per channel. The device operates with a 1.8V analog supply and offers an 800 MHz bandwidth for differential analog inputs. It consumes a low power of 1.2W at 185 MSPS. Performance metrics include Signal-to-Noise Ratio (SNR) up to 76.0 dBFS with Noise Shaping Requantizer (NSR) enabled and Spur-Free Dynamic Range (SFDR) of 88 dBc.
The AD6657ABBCZ supports various RF types such as CDMA, LTE, W-CDMA, and WiMAX. It is housed in a 144-LFBGA, CSPBGA package and features a surface mount type.
Applications include diversity radio and smart antenna (MIMO) systems, multimode digital receivers (3G), and general-purpose software radios.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD6657ABBCZ has an 11-bit resolution.
The maximum output data rate per channel is 200 MSPS.
With NSR enabled, the typical SNR is 76.0 dBFS in a 40 MHz band to 70 MHz at 185 MSPS.
The typical SFDR is 88 dBc to 70 MHz at 185 MSPS.
The typical power consumption is 1.2 W at 185 MSPS.
The analog supply voltage is 1.8 V.
The AD6657ABBCZ is available in a 144-LFBGA, CSPBGA package.
