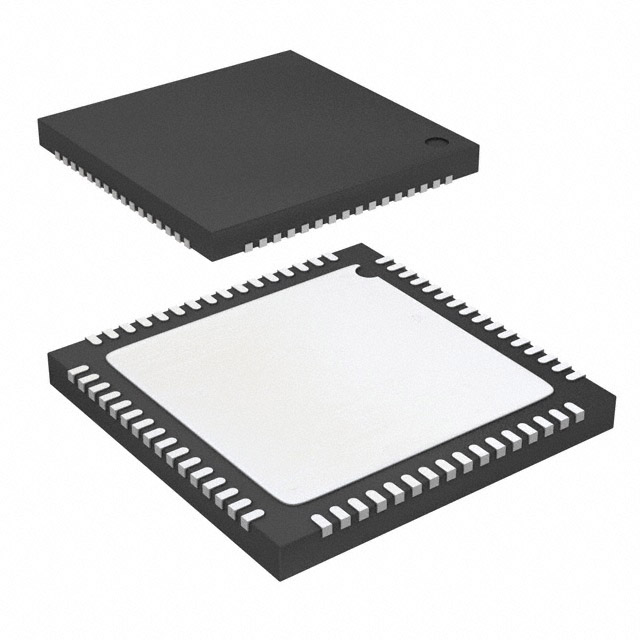

The AD6655ABCPZ-150 from Analog Devices is a high-performance IF Diversity Receiver integrated circuit. It features a dual-channel, 14-bit Analog-to-Digital Converter (ADC) capable of sample rates up to 150 MSPS, with IF sampling frequencies reaching 450 MHz.
Key electrical specifications include a Signal-to-Noise Ratio (SNR) of 74.5 dBc and a Spurious-Free Dynamic Range (SFDR) of 80 dBc at 70 MHz and 150 MSPS. The device operates with a 1.8 V analog supply and offers flexible output supply options of 1.8 V to 3.3 V for CMOS or 1.8 V for LVDS. It integrates a wideband digital downconverter (DDC) with a 32-bit complex numerically controlled oscillator (NCO) and decimation filters.
This RF receiver is housed in a 64-LFCSP-VQ package and is designed for surface mount applications. Its flexible analog input range spans from 1 V p-p to 2 V p-p, and it provides 95 dB of channel isolation. The AD6655ABCPZ-150 is suitable for various communication applications, including diversity radio systems, multimode digital receivers, and general-purpose software radios.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD6655ABCPZ-150 has a maximum sample rate of 150 MSPS.
The IF sampling frequency can be up to 450 MHz.
The device operates with a 1.8 V analog supply.
The integrated ADC has a resolution of 14 bits.
The typical SNR is 74.5 dBc in a 32.7 MHz bandwidth at 70 MHz and 150 MSPS.
It is supplied in a 64-LFCSP-VQ package for surface mounting.
