| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dynamic Range | |
| I/O and Core Voltage | |
| Input IP2 | |
| Input IP3 | |
| Intermediate Frequency (Minimum/Maximum) | |
| Noise Figure | |
| Tape & Reel |
The AD6650BBC from Analog Devices is a narrow-band receiver specifically engineered for diversity IF-to-baseband applications in GSM/EDGE systems. This integrated circuit offers a wide dynamic range of 116 dB, enabling robust signal reception.
It accommodates intermediate frequencies ranging from 70 MHz to 260 MHz. Key features include digital VGA, I/Q demodulators, active low-pass filters, and dual wideband ADCs. The receiver architecture is optimized to meet GSM/EDGE blocking requirements with minimal external components, such as one SAW filter for main and one for diversity.
Additional capabilities include programmable decimation and channel filters, a VCO, and phase-locked loop circuitry. The device operates with 3.3 V I/O and a CMOS core, and includes a microprocessor interface and JTAG boundary scan. Its applications span PHS or GSM/EDGE single carrier diversity receivers, microcell and picocell systems, wireless local loop, smart antenna systems, software radios, and in-building wireless telephony.

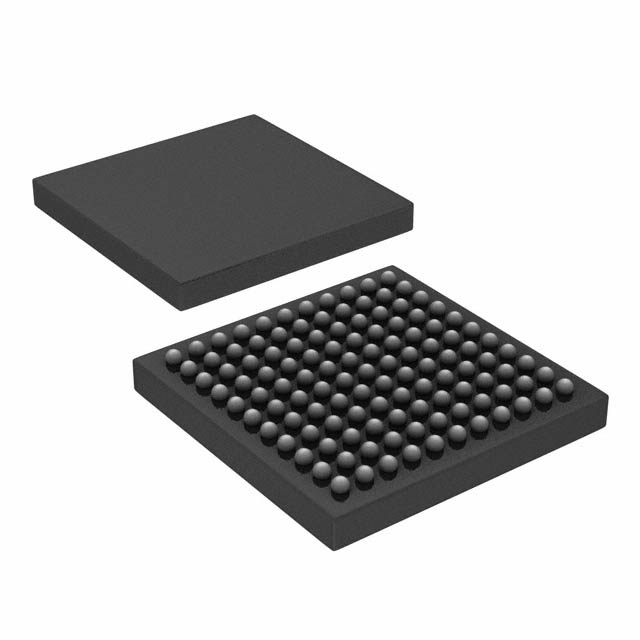

The AD6650BBC is supplied in a 121-BGA package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD6650BBC receiver has a dynamic range of 116 dB.
The AD6650BBC supports intermediate frequencies from 70 MHz to 260 MHz.
The input IP2 for the AD6650BBC at 70 MHz IF is +43 dBm.
The input IP3 for the AD6650BBC at 70 MHz IF is −9.5 dBm.
The noise figure of the AD6650BBC is 10 dB.
The AD6650BBC operates with 3.3 V I/O and a CMOS core.
The AD6650BBC is supplied in a 121-BGA package.
