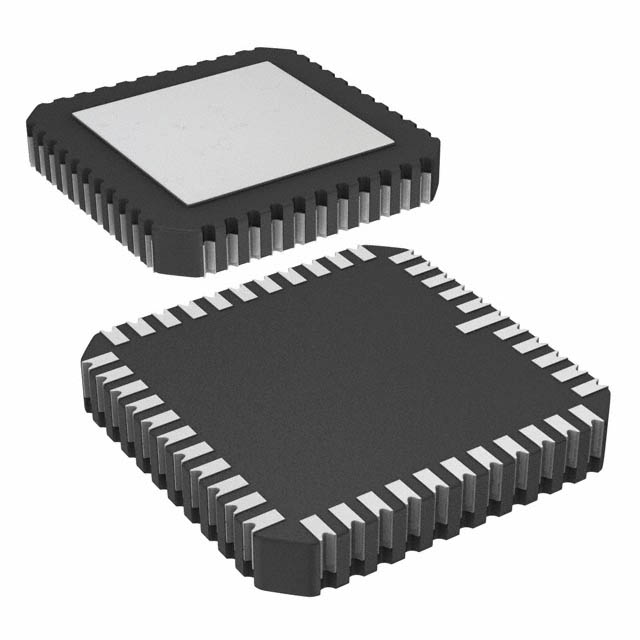

AD664BE The AD664BE is a 12-bit, quad voltage output digital-to-analog converter (DAC) from Analog Devices. It features four complete DACs with a parallel interface and operates from a 5V supply.
Mfr Part #:

AD664BE

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD664BE is a 12-bit, quad voltage output digital-to-analog converter (DAC) from Analog Devices. It features four complete DACs with a parallel interface and operates from a 5V supply.
✓ Total Stock: 8,169 pcs

AD664BE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,455 pcs
On Request
5455 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,714 pcs
On Request
2714 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD664BE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
SVHC Present
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

AD664BE Description

Short technical summary and product information.

The AD664BE is a monolithic 12-bit, quad voltage-output digital-to-analog converter (DAC) from Analog Devices. It integrates four complete DACs on a single chip, each with double buffered input latches and a data readback function. The device uses an R-2R architecture and provides a buffered voltage output. It features a parallel data interface that accepts 4-bit, 8-bit, or 12-bit words, allowing flexible interfacing with microprocessors. A reset-to-zero control pin simultaneously clears all outputs. The AD664BE operates from a single 5V supply and requires an external reference. Settling time is 10 µs typical, and integral nonlinearity (INL) is ±0.5 LSB typical. The device is specified over the industrial temperature range of -40°C to +85°C. It is available in a 44-CLCC surface-mount package (16.55x16.55 mm). Typical applications include automatic test equipment, robotics, process control, disk drives, instrumentation, and avionics.

AD664BE Quick Information

Product Type: Digital to Analog Converter (DAC)
Series: AD664
Canonical Name: AD664BE - 12-Bit Quad Voltage Output Digital-to-Analog Converter
Subcategory: Data Acquisition

AD664BE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD664BE Features

  • 12-bit resolution with 4 voltage-output DACs.
  • R-2R architecture for high accuracy.
  • Parallel data interface with 4/8/12-bit support.
  • 10 µs settling time for fast updates.
  • Surface mount 44-CLCC package.

AD664BE Applications

  • Automatic test equipment control.
  • Robotics and process control.
  • Disk drives and instrumentation.
  • Avionics systems.

AD664BE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the AD664BE?

The AD664BE operates from a 5V supply voltage.

What is the package type of the AD664BE?

The AD664BE is available in a 44-CLCC surface-mount package (16.55x16.55 mm).

What is the operating temperature range of the AD664BE?

The AD664BE operates from -40°C to +85°C.

Is the AD664BE RoHS compliant?

The AD664BE is listed as RoHS3 compliant, but this data is unverified.

How many DAC channels does the AD664BE have?

The AD664BE contains four complete DAC channels.

What is the resolution of the AD664BE?

The AD664BE has a resolution of 12 bits.

What type of data interface does the AD664BE use?

The AD664BE uses a parallel data interface that supports 4-bit, 8-bit, or 12-bit words.
