| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,600 pcs
|
2600 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| SVHC Present | |
| Settling Time |
The Analog Devices Inc. AD664BD-BIP is a versatile 12-bit digital-to-analog converter (DAC) IC, featuring four independent DAC channels. This component is designed for applications requiring precise voltage output conversion.
Key electrical specifications include a 12-bit resolution and a fast settling time of 10µs. It supports buffered voltage output and utilizes an external reference type. The device operates with analog supply voltages ranging from ±11.4V to ±16.5V and a digital supply voltage of 5V. Its architecture is based on the R-2R resistor network, ensuring reliable performance.

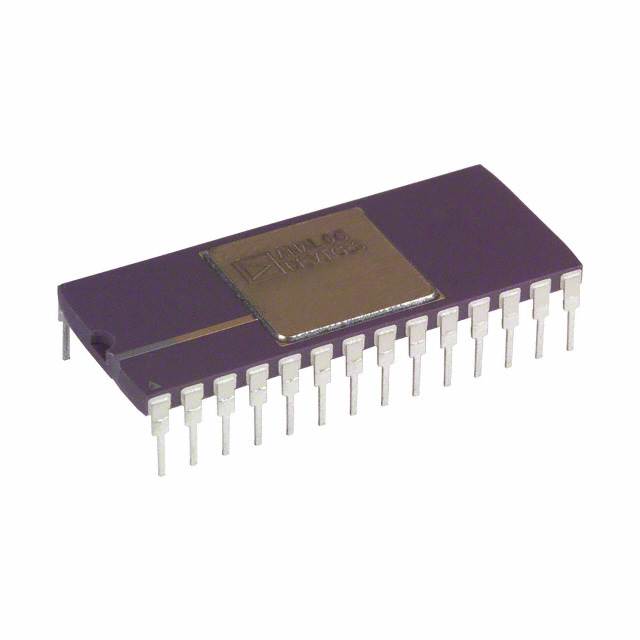

The AD664BD-BIP is housed in a 28-CDIP package and is designed for through-hole mounting. It operates across a wide temperature range of -40°C to 85°C, making it suitable for various environmental conditions. The component is RoHS3 Compliant and REACH Unaffected.
This DAC is well-suited for data acquisition systems, control systems, and signal generation applications where accurate and stable analog output is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
It is available in a 28-pin CDIP (0.600" width) package with through-hole mounting.
The analog supply voltage range is ±11.4V to 16.5V, and the digital supply voltage is 5V.
10µs.
12 bits.
4 D/A converters.
Parallel interface.
